1
Engine displacement
500
2
Year
2005
3
Trim
RANGER 2X4,4X4,6X6 - R05RB50AA/RD50AA/AB/AC/AD/RF50AA/AB
4
Parts Catalog

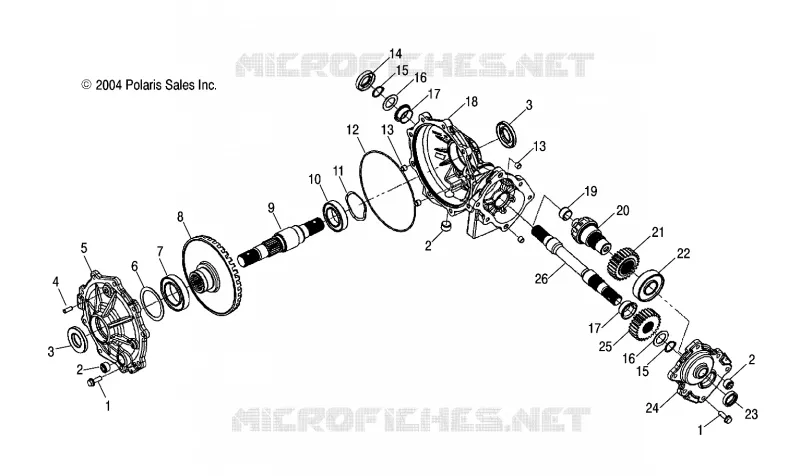

MID GEARCASE
5
Parts Diagram
Parts Catalog
GEARCASE
by
CRANKSHAFT AND PISTON
MID GEARCASE
-
1
1
2
2
2
3
3
4
5
6
7
8
9
10
11
12
13
13
14
15
15
16
16
17
17
18
19
20
21
22
23
24
25
26
-
Asm. Mid Gearcase
1341405
Not Available
1
SCREW
3233252
$9,44 Unit Price incl. VAT
2
PLUG DRAIN
3233805
$19,94 Unit Price incl. VAT
3
Seal
3233803
$31,49 Unit Price incl. VAT
4
Tube Vent Hose
3233524
$15,74 Unit Price incl. VAT
5
COVER OUTPUT
3233982
$608,99 Unit Price incl. VAT
6
SHIM 3.1 X 2.5
3233581
$73,49 Unit Price incl. VAT
7
BEARING BALL 6010 C3 50 X 80 X 10
3233268
$88,19 Unit Price incl. VAT
8
GEAR RING 37T
3233985
$456,74 Unit Price incl. VAT
9
Shaft Output
3233986
Not Available
10
BEARING BALL
3233806
$60,89 Unit Price incl. VAT
11
SPRING WAVE
3233987
Not Available
12
O-RING
3233988
$25,19 Unit Price incl. VAT
13
PIPE KNOCK
3233529
$16,79 Unit Price incl. VAT
14
SEAL TRIPLE LIP
3233788
$57,74 Unit Price incl. VAT
15
RING RETAINING BASIC EXT 0.938
3233306
$9,44 Unit Price incl. VAT
16
WASHER THRUST
3234050
Not Available
17
BUSHING
3233989
$52,49 Unit Price incl. VAT
18
GEARCASE R11
3233983
$745,49 Unit Price incl. VAT
19
BUSHING
3233292
$57,74 Unit Price incl. VAT
20
PINION 10T
3233990
$362,24 Unit Price incl. VAT
21
GEAR 26T OUTPUT
3233991
$346,49 Unit Price incl. VAT
22
BEARING BALL
3233589
$101,84 Unit Price incl. VAT
23
SEAL TRIPLE LIP
3233785
$36,74 Unit Price incl. VAT
24
COVER INPUT
3233984
Not Available
25
GEAR 26T INPUT
3233993
$362,24 Unit Price incl. VAT
26
SHAFT OUTPUT
3233992
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
