1
Engine displacement
500
2
Year
2005
3
Trim
RANGER 2X4,4X4,6X6 - R05RB50AA/RD50AA/AB/AC/AD/RF50AA/AB
4
Parts Catalog

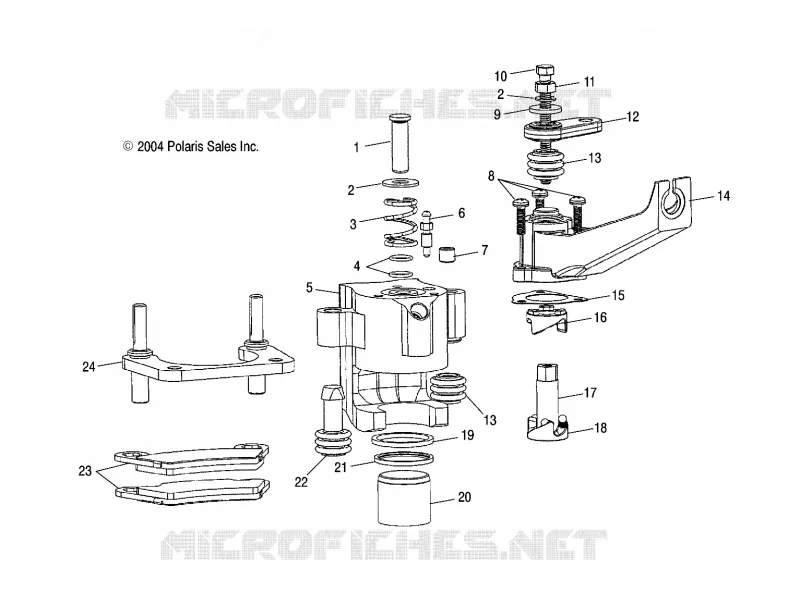

REAR BRAKE CALIPERS (6X6)
5
Parts Diagram
Parts Catalog
PARKING BRAKE LOCK CABLES (6X6)
by
REAR SHOCK (6X6)
REAR BRAKE CALIPERS (6X6)
1
2
2
3
4
5
5
6
7
8
9
10
11
12
13
13
14
14
15
16
16
17
18
18
19
20
21
22
23
24
1
Plunger Brake
5133195
$89,24 Unit Price incl. VAT
2
Washer Flat Plunger
7556205
Not Available
3
Spring Compression
1910581
Not Available
4
O-Ring
5412127
$17,84 Unit Price incl. VAT
5
Asm. Caliper Brake LH [Incl. 1-24]
1910857
Not Available
5
Asm. Caliper Brake RH [Incl. 1-24]
1910858
Not Available
6
BLEEDER SCREW 4WD
7080352
$5,76 Unit Price incl. VAT
7
SCR-3/8-24X5/16 SOC SET-Y
7515489
$10,49 Unit Price incl. VAT
8
Screw
7517963
Not Available
9
Washer Flat
7556206
$41,99 Unit Price incl. VAT
10
Bolt
7517964
$19,94 Unit Price incl. VAT
11
NUT-1/4-20 HEX-Y
7542105
$7,34 Unit Price incl. VAT
12
Lever Brake Actuator
5133196
Not Available
13
BOOT PIN SEAL
5410494
5412506
$6,29 Unit Price incl. VAT
14
Bracket Housing LH
5245793
Not Available
14
Bracket Housing RH
5245794
Not Available
15
Gasket Ramp
5830214
$57,74 Unit Price incl. VAT
16
Insert Ball Track RH
5133201
Not Available
16
Insert Ball Track LH
5133199
$34,64 Unit Price incl. VAT
17
Brake Actuator LH
5133202
Not Available
18
Ball
3514375
Not Available
18
Brake Actuator RH
5133203
Not Available
19
SEAL-CALIPER INNER 1.50#
5412010
$13,64 Unit Price incl. VAT
20
PISTON-CALIPER 1.50 (MACH)
5132829
$73,49 Unit Price incl. VAT
21
SEAL-CALIPER OUTER 1.50#
5412011
$13,64 Unit Price incl. VAT
22
BOOT BUSHING
5410495
5412505
$6,29 Unit Price incl. VAT
23
KIT-BRAKE PAD ASM 1.5 [INCL. 4 PADS]
2202413
$98,16 Unit Price incl. VAT
24
Asm. Caliper Mount
1910802
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
