1
Engine displacement
500
2
Year
2005
3
Trim
RANGER 2X4,4X4,6X6 - R05RB50AA/RD50AA/AB/AC/AD/RF50AA/AB
4
Parts Catalog

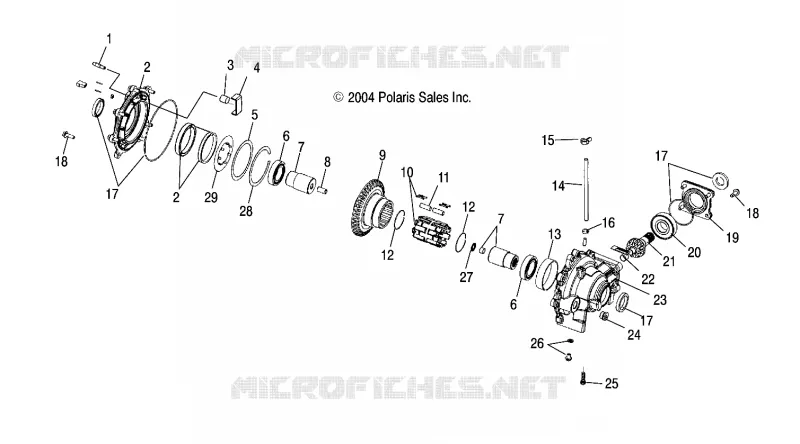

FRONT HOUSING (4X4)(6X6)
5
Parts Diagram
Parts Catalog
AIR BOX
by
GEARCASE
FRONT HOUSING (4X4)(6X6)
-
-
-
-
1
2
2
3
4
5
6
6
7
7
8
9
10
10
11
12
12
13
14
15
16
17
17
17
18
18
19
20
21
13
13
24
25
26
27
28
29
-
Asm. Front Gearcase (If built after 10/27/03)
1341497
$3 008,24 Unit Price incl. VAT
-
Asm. Gearcase [Incl. 14 23 24]
3233950
$3 008,24 Unit Price incl. VAT
-
Asm. Clutch [Incl. 11-13)(1341497)
3234168
Not Available
-
ASM-WEIGHT/BUSHING (10-72)
1332428
$3 008,24 Unit Price incl. VAT
1
Screw Set (1341497)
3234163
Not Available
2
ASM. COVER PLATE [INCL. 2-8 21 36]
3234159
$892,49 Unit Price incl. VAT
3
Button Thrust (1341497)
3234164
Not Available
4
PLATE THRUST
3234165
$52,49 Unit Price incl. VAT
5
Shim Armature Plate
3234161
$68,24 Unit Price incl. VAT
6
Bearing Roller Ball
3233926
$101,84 Unit Price incl. VAT
7
ASM. RACE/OUTPUT HUB [INCL. 10-13]
3233953
$745,49 Unit Price incl. VAT
8
PIN DOWEL
3233928
$41,99 Unit Price incl. VAT
9
Clutch Housing/Ring Gear (1341497)
3234166
$1 853,24 Unit Price incl. VAT
10
Asm. Roll Cage [Incl. Spring and Roll Cage)(1341497)
3234167
$519,74 Unit Price incl. VAT
10
Spring
3233935
$68,24 Unit Price incl. VAT
11
Kit Roller [INCL. 14 ROLLERS]
3233957
$272,99 Unit Price incl. VAT
12
Ring Retaining Wire Form
3233934
Not Available
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
14
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
15
CLIP ROSEBUD
4020139
$9,44 Unit Price incl. VAT
16
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
17
Kit Minor Repair [INCL. 6 8 22 23]
3233956
$136,49 Unit Price incl. VAT
18
KIT BOLT [INCL. 11 BOLTS]
3233955
$57,74 Unit Price incl. VAT
19
Cover Input
3233947
$136,49 Unit Price incl. VAT
20
Bearing Roller Ball
3234112
$101,84 Unit Price incl. VAT
21
Shaft Pinion 11T
3233944
3235387
$1 259,99 Unit Price incl. VAT
22
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
23
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
24
Plug Oil Fill
3233942
$62,99 Unit Price incl. VAT
25
Bolt Hex Flange
7518364
$3,14 Unit Price incl. VAT
26
Asm. Drain Plug [Incl. Plug and Washer]
3233951
Not Available
27
Bearing Needle Roller Thrust
3233929
3233953
$745,49 Unit Price incl. VAT
28
Ring Retaining Internal
3234162
$52,49 Unit Price incl. VAT
29
Plate Armature (1341497)
3234160
3234101
$204,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
