1
Engine displacement
500
2
Year
2005
3
Trim
RANGER 2X4,4X4,6X6 - R05RB50AA/RD50AA/AB/AC/AD/RF50AA/AB
4
Parts Catalog

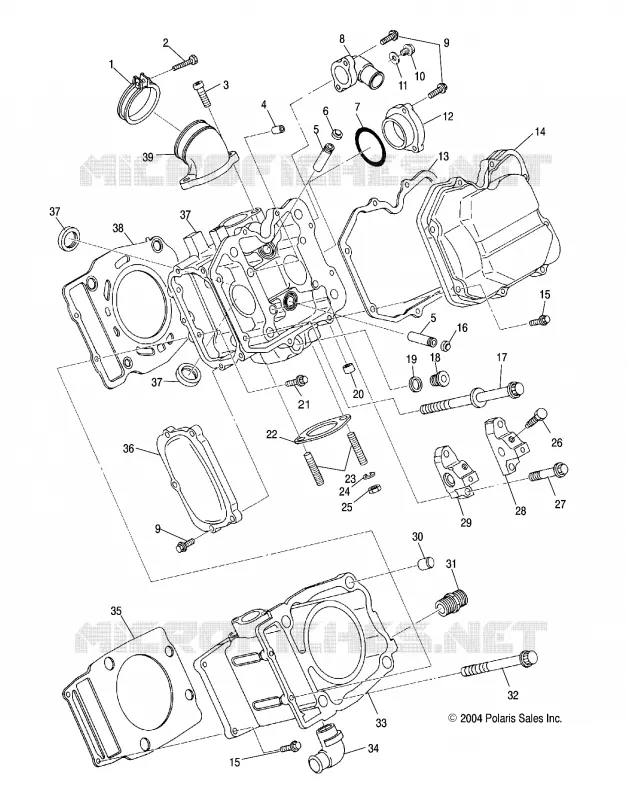

CYLINDER
5
Parts Diagram
Parts Catalog
CRANKCASE
by
CARBURETOR
CYLINDER
1
2
3
4
5
5
6
7
8
9
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
35
36
37
37
37
38
39
1
ASM. BAND ADAPTOR [INCL. 9]
3083166
7082340
$36,74 Unit Price incl. VAT
2
SCREW
3081497
$4,19 Unit Price incl. VAT
3
BOLT SOCKET HEAD
3081330
$7,34 Unit Price incl. VAT
4
PIN STRAIGHT
3084857
Not Available
5
GUIDE VALVE
3084994
$83,99 Unit Price incl. VAT
6
SEAL INTAKE VALVE
3084858
$25,19 Unit Price incl. VAT
7
O-RING
3084867
$41,99 Unit Price incl. VAT
8
Adapter Water Out
3088208
$89,24 Unit Price incl. VAT
9
BOLT FLANGE(10)
3084877
Not Available
10
BOLT FLANGE
3085359
$4,19 Unit Price incl. VAT
11
WASHER-FLAT 6.15X12X1MM-AL
7555998
$2,09 Unit Price incl. VAT
12
ADAPTER CAMSHAFT
3084866
Not Available
13
GASKET (R.COVER)
3085074
$57,74 Unit Price incl. VAT
14
COVER ROCKER
3085073
$152,24 Unit Price incl. VAT
15
Bolt Flange
3084874
Not Available
16
SEAL EXHAUST VALVE
3084859
$41,99 Unit Price incl. VAT
17
BOLT
3084875
Not Available
18
PLUG
3084860
$13,64 Unit Price incl. VAT
19
GASKET
3084861
$9,44 Unit Price incl. VAT
20
PLUG BLIND
3084862
Not Available
21
Bolt Flange
3086781
$9,44 Unit Price incl. VAT
22
GASKET EXH.
3085075
$73,49 Unit Price incl. VAT
23
STUD (10)
3085326
Not Available
24
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
25
Nut
3087199
Not Available
26
BOLT (ROCKER SHAFT)
3085854
Not Available
27
BOLT
3084876
$9,44 Unit Price incl. VAT
28
SUPPORT VALVE ROCKER (PTO)
3084864
Not Available
29
SUPPORT VALVE ROCKER (MAG)
3084863
$173,24 Unit Price incl. VAT
30
Pin Knock
3087266
Not Available
31
UNION OIL PUMP
3084849
Not Available
32
BOLT FLANGE
3084873
Not Available
33
Asm. Cylinder [Incl. 34][2x4]
3089241
Not Available
33
Asm. Cylinder [Incl. 34][4x4][6x6]
3089256
$720,29 Unit Price incl. VAT
34
Pipe 2 Elbow
3086747
Not Available
35
GASKET CYLINDER
3085370
$73,49 Unit Price incl. VAT
36
Cover Camshaft
3089242
$115,49 Unit Price incl. VAT
37
HEAD CYLINDER * (Incl. 5-7 15 17-19 22)
3085527
$1 275,74 Unit Price incl. VAT
38
GASKET HEAD
3085371
$104,99 Unit Price incl. VAT
39
ADAPTER
3084879
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
