RECOIL STARTER 2X4 350L W937539 (4924032403036A)
5
Parts Diagram
Parts Catalog
CARBURETOR 2X4 350L W937539 (4924032403035A)
by
STARTING MOTOR 2X4 350L W937539 (4924032403037A)

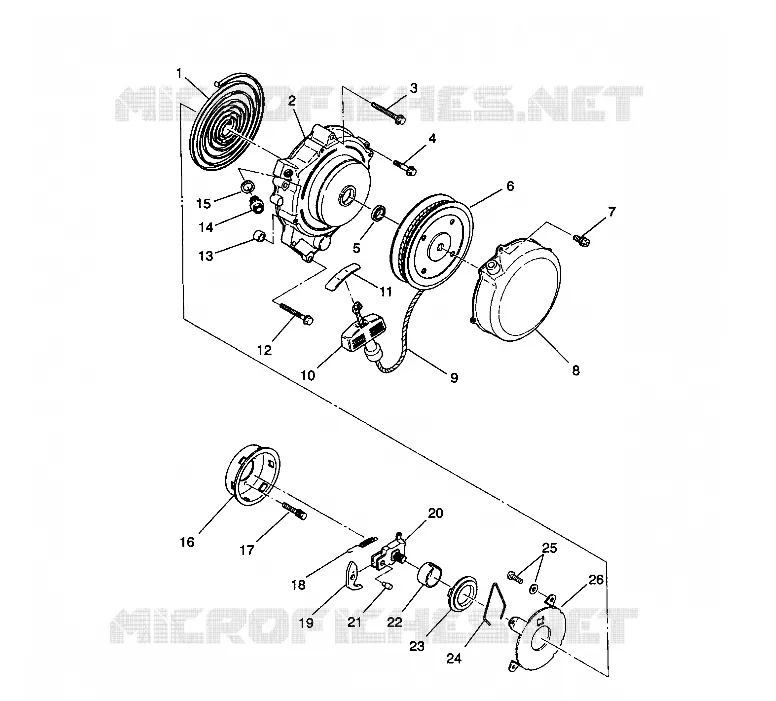

RECOIL STARTER 2X4 350L W937539 (4924032403036A)
1
SPRING SPIRAL
3083815
$73,07 Unit Price incl. VAT
2
CASE STARTER B UNIT
3083911
$435,74 Unit Price incl. VAT
2
STARTER RECOIL COMPL. (Incl. 1-18)
3083924
Not Available
3
BOLT FLANGE
3084178
Not Available
4
BOLT FLANGE Substituted by 3086751
3084177
Not Available
5
GROMMET
3083817
Not Available
6
REEL COMPL.
3083814
$178,49 Unit Price incl. VAT
7
BOLT FLANGE
3083826
Not Available
8
CASE STARTER COMPL.
3083914
Not Available
9
ROPE STARTER
2870621
$47,24 Unit Price incl. VAT
10
KNOB STARTER
3083659
Not Available
11
CAP KNOB
3083660
Not Available
12
BOLT FLANGE
3084179
Not Available
13
BUSHING STARTER
3083669
Not Available
14
PLUG Substituted by 3086749
3083453
Not Available
15
GASKET
3082956
$9,44 Unit Price incl. VAT
16
PULLEY STARTING
3083915
Not Available
17
BOLT (10)
3081665
$6,29 Unit Price incl. VAT
18
SPRING RETURN
3083827
$18,57 Unit Price incl. VAT
19
RATCHET
3083819
Not Available
20
GUIDE COMPL.
3083913
Not Available
21
PIN RATCHET
3083820
Not Available
22
HOOK SPRING
3083818
Not Available
23
GUIDE RATCHET
3083821
Not Available
24
SPRING FRICTION
3083912
$41,04 Unit Price incl. VAT
25
SCREW & WASHER
3084176
Not Available
26
CASE SPRING
3083925
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
