1
Engine displacement
350
2
Year
1993
3
Trim
350L 2X4 - W937539
4
Parts Catalog

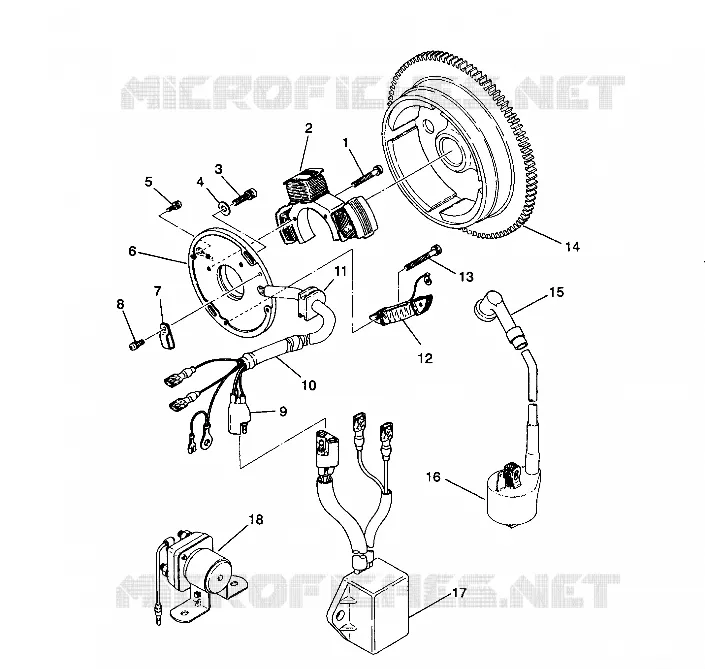

MAGNETO ASSEMBLY 2X4 350L W937539 (4924032403038A)
5
Parts Diagram
Parts Catalog
WATER PUMP 2X4 350L W937539 (4924032403033A)
by
OIL TANK ASSEMBLY 2X4 350L W937539 (4924032403008A)
MAGNETO ASSEMBLY 2X4 350L W937539 (4924032403038A)
16
17
18
1
SCREW&WASHER ASM.(10)
3083736
$2,09 Unit Price incl. VAT
2
STATOR #1
3084211
Not Available
3
SCREW&WASHER Substituted by 3086788
3083774
Not Available
4
WASHER
3083357
$4,19 Unit Price incl. VAT
5
SCREW
3082366
Not Available
6
PLATE ASM. (Incl. 2-14)
3084218
Not Available
6
PLATE COIL
3084209
Not Available
7
CLAMP
3081296
Not Available
8
SCREW&WASHER (10)
3081260
Not Available
9
COUPLER
3083909
$41,99 Unit Price incl. VAT
10
HARNESS WIRE
3084219
Not Available
11
GROMMET
3084212
Not Available
12
COIL EXCITING
3083422
Not Available
13
SCREW & WASHER
3083423
$6,29 Unit Price incl. VAT
14
FLYWHEEL W/RING GEAR
3084207
Not Available
15
CAP SPARK PLUG (10)
4020129
4083595
$52,49 Unit Price incl. VAT
16
COIL IGNITION *
3083923
Not Available
17
CDI UNIT
3084213
Not Available
18
SWITCH-MAGNETIC Substituted by 3085521 (Incl. 27 28) (Twin ES)
3083211
4011335
$115,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
