1
Engine displacement
350
2
Year
1993
3
Trim
350L 2X4 - W937539
4
Parts Catalog

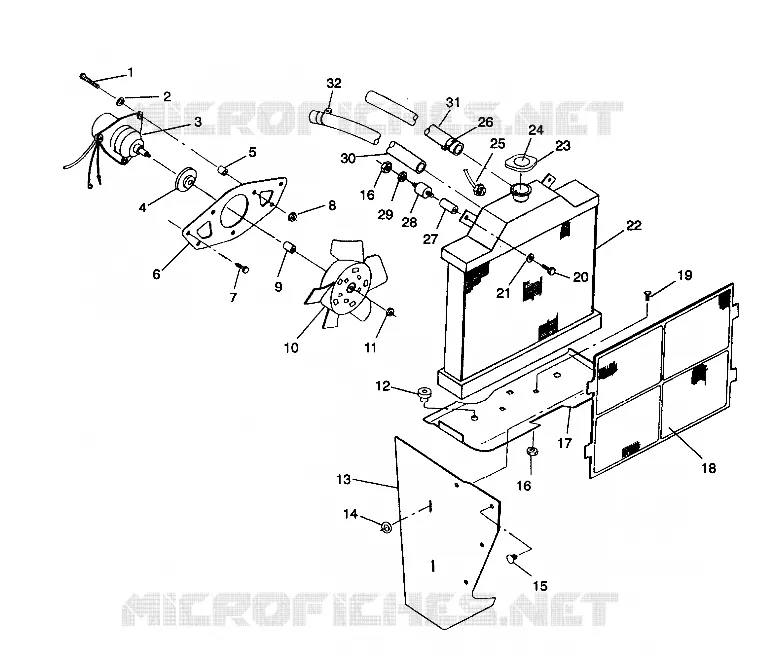

COOLING SYSTEM 2X4 350L W937539 (4924032403005A)
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING 2X4 350L W937539 (4924032403004A)
by
FUEL TANK ASSEMBLY 2X4 350L W937539 (4924032403007A)
COOLING SYSTEM 2X4 350L W937539 (4924032403005A)
2
3
4
5
6
7
8
9
10
11
12
13
13
13
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
SCREW(10)
7511867
Not Available
2
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
3
MOTOR FAN Substituted by 4170009
3084266
Not Available
4
COVER
3083951
Not Available
5
SPACER FAN BRKT.
5333073
$6,18 Unit Price incl. VAT
6
BRKT COOLING FAN Substituted by 5224741-067
5222559067
Not Available
7
SCREW(10)
7512252
Not Available
8
NUT-8-32 HX LK GR A-Y
7541915
Not Available
9
BUSHING
3083950
Not Available
10
BLADE FAN Substituted by 5240822
5431262
$92,28 Unit Price incl. VAT
11
NUT
3083952
Not Available
12
BUSHING-MOUNT LOWER RADIATOR
5410584
$10,49 Unit Price incl. VAT
13
SHIELD RH RADIATOR
5431189
Not Available
13
SHIELD LH RADIATOR
5431188
Not Available
14
O-Ring
5410607
Not Available
15
CLIP-PLASTIC DART NYLON P157
7670078
$6,29 Unit Price incl. VAT
16
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
17
GUARD LOW.RADIATOR
5222547067
Not Available
18
SCREEN RADIATOR Substituted by 5431610
5431228
Not Available
19
SCR-RHCAR-1/4-20X0.75 GR5 ZY3
7512193
$4,19 Unit Price incl. VAT
20
BOLT
7512113
$7,34 Unit Price incl. VAT
21
WASHER(10)
7552605
$9,44 Unit Price incl. VAT
22
RADIATOR
1240006
Not Available
23
CAP RADIATOR Substituted by 2511270
2511189
$47,24 Unit Price incl. VAT
24
DECAL(CPSC) RAD.CAP
7073068
Not Available
25
SWITCH RADIATOR THERMO.
4110099
Not Available
26
CLAMP-HOSE Substituted by 7080547
7080225
Not Available
27
SPACER MOUNT
5020572
$16,79 Unit Price incl. VAT
28
MOUNT RUBBER
3110032
$15,74 Unit Price incl. VAT
29
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
30
HOSE LOWER ENG.
5410606
Not Available
31
HOSE ENG UPPER
5410570
$89,24 Unit Price incl. VAT
32
CLAMP-HOSE (10) Substituted by 7080475
7080233
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
