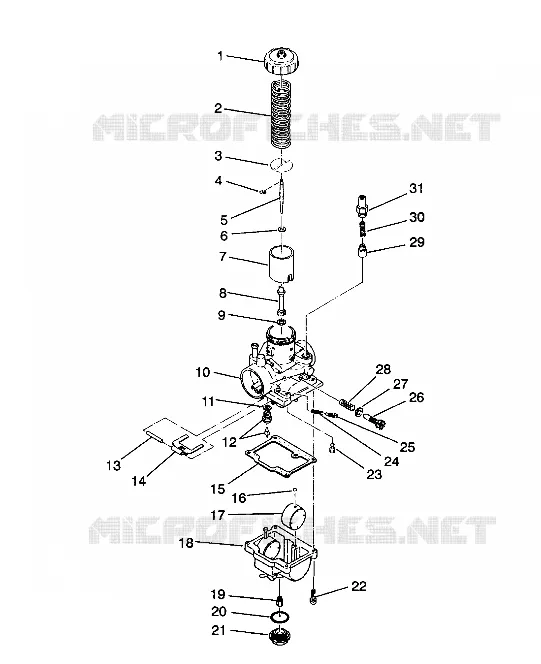

CARBURETOR 2X4 350L W937539 (4924032403035A)
5
Parts Diagram
Parts Catalog
OIL PUMP 2X4 350L W937539 (4924032403034A)
by
RECOIL STARTER 2X4 350L W937539 (4924032403036A)
CARBURETOR 2X4 350L W937539 (4924032403035A)
19
20
21
22
23
24
25
26
27
28
29
30
31
1
ASM. TOP MIXING CHAMBER
3130184
$68,24 Unit Price incl. VAT
2
SPRING THROTTLE
3130439
$27,29 Unit Price incl. VAT
3
PLATE THROTTLE
3130027
$19,94 Unit Price incl. VAT
4
E RING(10) Substituted by 3130508
3130003
3130508
$12,59 Unit Price incl. VAT
5
JET NEEDLE 6-DH29 (6-DH29)
3130462
Not Available
6
WASHER
3130355
$13,64 Unit Price incl. VAT
7
VALVE THROTTLE(1.5) (1.5)
3130427
Not Available
8
NEEDLE JET ASM. (O-6(480))
3130429
Not Available
9
RING MAIN JET
3130393
Not Available
10
CARBURETOR (Includes 1-29)
3130425
Not Available
11
PACKING NEEDLE VALVE
3130017
$7,34 Unit Price incl. VAT
12
VALVE NEEDLE
3130360
$89,24 Unit Price incl. VAT
13
PIN FLOAT
3130361
$18,89 Unit Price incl. VAT
14
ARM FLOAT
3130018
$52,49 Unit Price incl. VAT
15
GASKET FLOAT CHAMBER
3130020
$31,49 Unit Price incl. VAT
16
CAP
3130237
$8,39 Unit Price incl. VAT
17
ASM. FLOAT
3130430
$73,49 Unit Price incl. VAT
18
BOWL FLOAT (350)
3130443
Not Available
19
JET MAIN HX.HD#200(10) (No. 200)
3130123
$15,74 Unit Price incl. VAT
20
O-RING
3130239
Not Available
21
SCREW GUIDE
3130432
$52,49 Unit Price incl. VAT
22
ASM. SCREW AND WASHER
3130025
$6,29 Unit Price incl. VAT
23
JET PILOT #30(10) (No. 30)
3130065
$18,89 Unit Price incl. VAT
24
SPRING AIR ADJUST
3130012
$18,89 Unit Price incl. VAT
25
SCREW AIR
3130011
$36,74 Unit Price incl. VAT
26
SCREW THROTTLE STOP
3130009
$36,74 Unit Price incl. VAT
27
WASHER
3130447
Not Available
28
SPRING THROT.ADJ. (Throttle Adjuster)
3130436
Not Available
29
ASM. PLUNGER
3130328
$68,24 Unit Price incl. VAT
30
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
31
HOLDER GUIDE
3130199
$52,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
