1
Engine displacement
0
2
Year
1992
3
Trim
XLT SP - 0920767
4
Parts Catalog

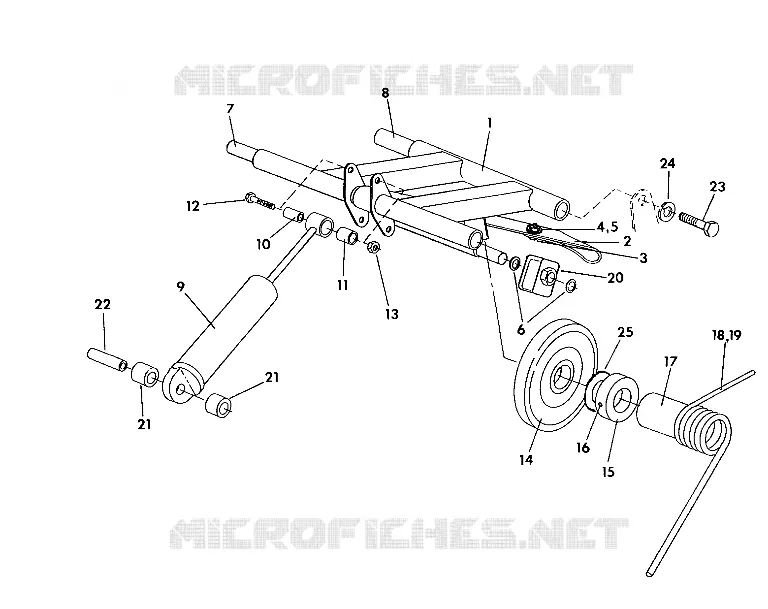

REAR TORQUE ARM 500 XLT (4921662166026A)
5
Parts Diagram
Parts Catalog
STEERING 500 XLT (4921662166017A)
by
DRIVE CLUTCH 500 XLT (4921662166027A)
REAR TORQUE ARM 500 XLT (4921662166026A)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
1
DESC NOT_AVAILABLE
1540723
Not Available
2
STRAP LIMITER
5410587
Not Available
3
BOLT(10)
7512247
Not Available
4
WASHER-.270X1.25X.060 FL-Y
7558221
$4,19 Unit Price incl. VAT
5
NUT FLEXLOC
7542103
$10,49 Unit Price incl. VAT
6
CLIP PUSH ON
7080394
$4,19 Unit Price incl. VAT
7
SHAFT MTG REAR
5020570
Not Available
8
SHAFT R.TORQUE ARM Substituted by 5020721
5020626
Not Available
9
SHOCK GAS Substituted by 2870979
7041267
Not Available
10
BUSHING R.SHOCK
5333030
Not Available
11
BUSHING
5430537
$7,34 Unit Price incl. VAT
12
SCR-HH-5/16-18X1.75 GR5 ZY3
7512329
$7,34 Unit Price incl. VAT
13
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
14
WHEEL CARRIER
1543023
Not Available
15
COLLAR-BRG. LOCK
5010155
Not Available
16
SCREW SOCKET SET
7512257
$7,34 Unit Price incl. VAT
17
SPACER SPRING
5431422
Not Available
18
SPRING LH R.SUSP. Substituted by 7041273-067
7041273
Not Available
19
SPRING RH R.SUSP Substituted by 7041274-067
7041274
Not Available
20
ROLLER SPRING ADJ.
5431168
Not Available
21
SPACER SHOCK
5020615
Not Available
22
BUSHING (1.34 IN.)
5020612
Not Available
23
BOLT(10) Substituted by 7512492
7515458
7512492
$2,09 Unit Price incl. VAT
24
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
25
WASHER SPRING
7571605
$11,54 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
