1
Engine displacement
0
2
Year
1992
3
Trim
XLT SP - 0920767
4
Parts Catalog
BRAKE CHAINCASE 500 XLT (4921662166019A)
5
Parts Diagram
Parts Catalog
CONSOLE 500 XLT (4921662166011A)
by
CHAINCASE ASSEMBLY 500 XLT (4921662166021A)

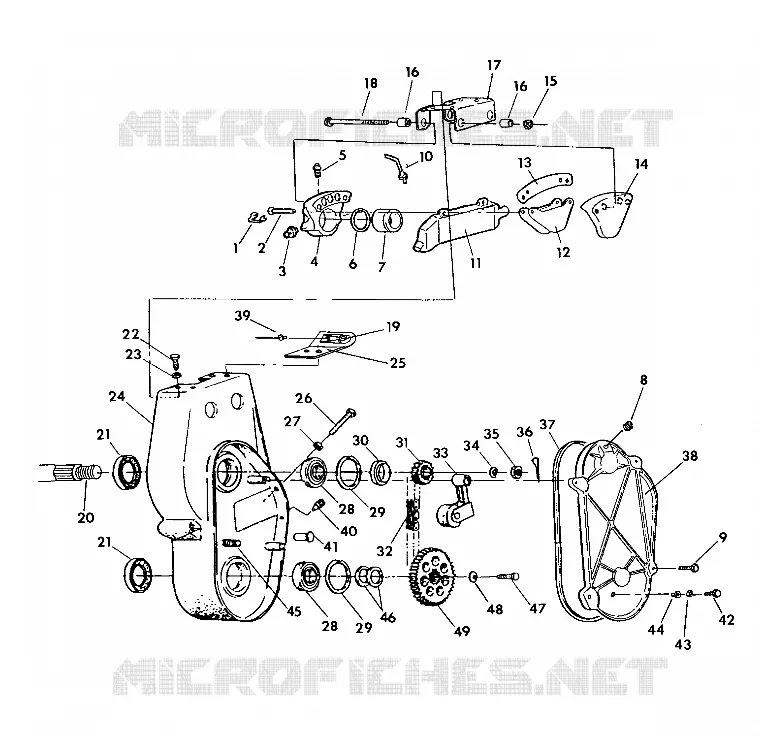

BRAKE CHAINCASE 500 XLT (4921662166019A)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
21
22
23
24
25
26
27
28
28
29
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
1
CLIP-SPRING
1930562
Not Available
2
PIN PAD RETAINING
1930563
Not Available
3
SWITCH STOPLIGHT
4110089
Not Available
4
HOUSING PISTON SIDE [No Longer Available]
1930699
Not Available
5
SCREW-BLEEDER
1930564
Not Available
6
SEAL-PISTON
1930567
Not Available
7
PISTON
1930568
Not Available
8
PLUG-1/2-14 NPT
7051520
$15,74 Unit Price incl. VAT
9
SCR-1/4-20X1 1/4-TRIRD HX WH-Y
7512242
$4,19 Unit Price incl. VAT
10
LINE BRAKE
1930696
Not Available
11
COOLER-BRAKE
2511154
$85,88 Unit Price incl. VAT
12
PAD BRAKE
1930569
Not Available
13
SPACER
5210999
Not Available
14
CASTING-CARRIER
1930570
Not Available
15
NUT
1930558
Not Available
16
BUSHING
1930559
Not Available
17
BRACKET
5223986
Not Available
18
BOLT-BRIDGE
1930561
Not Available
19
GUIDE RECOIL
5431385
$19,94 Unit Price incl. VAT
20
JACKSHAFT ASM. Substituted by 1332141-067 (Includes Snap Ring Pg. 21)
1332141
Not Available
21
SEAL OIL
3610030
$36,74 Unit Price incl. VAT
22
BOLT(10)
7512240
$7,34 Unit Price incl. VAT
23
WASHER SPRING LOCK
7552801
$3,14 Unit Price incl. VAT
24
CHAINCASE
5130795
Not Available
25
BRACKET Substituted by 5222686-067
5222686
Not Available
26
SCR-HH-3/8-16X2.75GR5 ZY3
7515511
$7,34 Unit Price incl. VAT
27
NUT-3/8-16-Y
7542404
$3,14 Unit Price incl. VAT
28
BEARING CHAINCASE **
3514306
Not Available
29
RING RETAINING
7718406
$11,54 Unit Price incl. VAT
30
SPACER SPROCKET
5010270
Not Available
31
SPKT 21T (13W) (13 Wide)
3221054
Not Available
32
CHAIN 66P (13W) SILENT (13 Wide)
3224051
Not Available
33
TIGHTENER ASM. Substituted by 1332213
1332078
Not Available
34
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
35
NUT SLOTTED
7542810
$5,76 Unit Price incl. VAT
36
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
37
GASKET-CHAINCASE
5410277
Not Available
38
COVER
5130817
Not Available
39
RIVET (50)
7621477
$2,09 Unit Price incl. VAT
40
PLUG MAGNETIC
7051518
7052045
$26,24 Unit Price incl. VAT
41
CAP STUD COVER
5020569
Not Available
42
SCREW(10)
7511909
$7,34 Unit Price incl. VAT
43
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
44
NUT-WELL(10)
7541918
Not Available
45
BOLT(10)
7515477
$52,49 Unit Price incl. VAT
46
BUSHING
7556509
$3,14 Unit Price incl. VAT
47
SCREW(10)
7515350
7517979
$7,34 Unit Price incl. VAT
48
WASHER-SPRING CON 5/16X.090 Z
7571618
$11,54 Unit Price incl. VAT
49
SPROCKET 39T (13W) (13 Wide)
3222052
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
