1
Engine displacement
0
2
Year
1992
3
Trim
XLT SP - 0920767
4
Parts Catalog
STEERING 500 XLT (4921662166017A)
5
Parts Diagram
Parts Catalog
STEERING HANDLEBAR 500 XLT (4921662166016A)
by
REAR TORQUE ARM 500 XLT (4921662166026A)

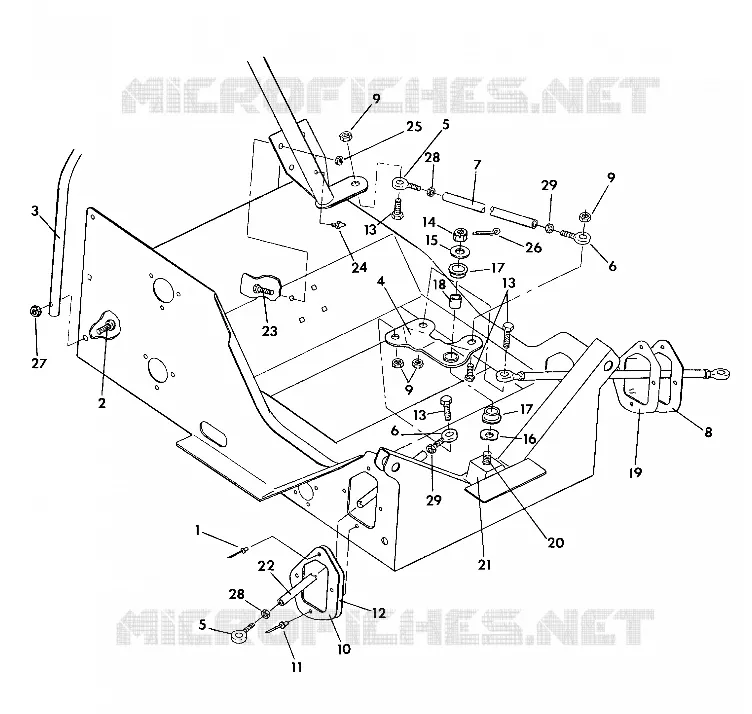

STEERING 500 XLT (4921662166017A)
1
2
3
4
5
5
6
6
7
8
9
9
9
10
11
12
13
13
13
14
15
16
17
17
18
19
20
21
23
24
25
26
27
28
28
29
29
1
POP RIVET(50)
7621303
Not Available
2
BOLT-CARRIAGE(10)
7512262
Not Available
3
HOOP STEERING Substituted by 1011513-067 (400 600 600 SE)
1011513
Not Available
4
ARM STEERING CTR. Substituted by 1822047-067 (600 600 SE)
1822047
Not Available
5
ROD END LH Substituted by 7060164
7060124
7060164
$99,74 Unit Price incl. VAT
6
ROD END RH Substituted by 7060165
7060125
7060165
$99,74 Unit Price incl. VAT
7
ROD-DRAG LINK
5332712
Not Available
8
PLATE LH BOOTSEAL Substituted by 5210959-067
5210959
Not Available
9
Nut
7542403
Not Available
10
PLATE RH BOOT SEAL
5210904
Not Available
11
RIVET(50)
7621301
Not Available
12
BOOT-TIE ROD
5410328
Not Available
13
SCR-HH-3/8-24X5.5 GR5 ZY3
7512404
$7,34 Unit Price incl. VAT
14
NUT(10)
7542712
$17,84 Unit Price incl. VAT
15
WASHER
7555721
$2,09 Unit Price incl. VAT
16
WASHER-WAVE 7/8X1X.010
7555735
$7,34 Unit Price incl. VAT
17
BUSHING
3563907
$7,34 Unit Price incl. VAT
18
BUSHING-SPACER
5010161
Not Available
19
BOOT LH
5410388
Not Available
20
BOLT(10)
7512658
Not Available
21
BLOCK-CTR.STEERING
5130534
Not Available
23
BOLT(10) Substituted by 7512377
7512394
7512377
$9,44 Unit Price incl. VAT
24
FITTING-LUBE.(10) Substituted by 7080561
7080220
$9,44 Unit Price incl. VAT
25
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
26
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
27
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
28
NUT-3/8-24-(L.H.)-Y
7542424
$1,56 Unit Price incl. VAT
29
NUT-3/8-24-2B-Z
7542401
$4,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
