STEERING HANDLEBAR 500 XLT (4921662166016A)
5
Parts Diagram
Parts Catalog
MASTER CYLINDER 500 XLT (4921662166015A)
by
STEERING 500 XLT (4921662166017A)

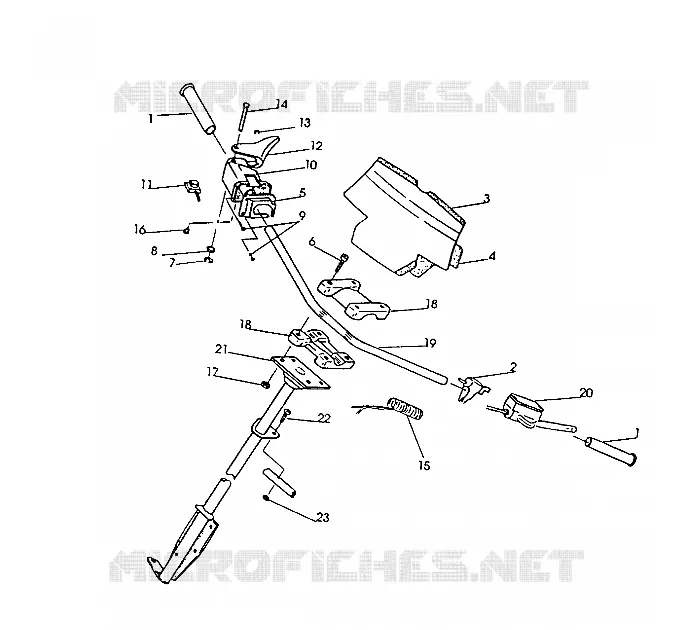

STEERING HANDLEBAR 500 XLT (4921662166016A)
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
22
1
GRIP H#BAR BLACK Substituted by 5432634
5410272067
$52,49 Unit Price incl. VAT
2
Switch Dimmer
4110107
$115,49 Unit Price incl. VAT
3
COVER HANDLEBAR
2690051
Not Available
4
PAD H#BAR.ASM.
2690041
Not Available
5
DESC NOT_AVAILABLE
5431313
Not Available
6
BOLT(10) (SS)
7512254
Not Available
7
RING RETAINING
7710401
$7,34 Unit Price incl. VAT
8
WASHER
7555730
$7,34 Unit Price incl. VAT
9
SCR-6X3/8 PH TR HD GR5-Y
7511848
$7,34 Unit Price incl. VAT
10
BLOCK THROTTLE(EASY) Substituted by 5433343
5431311067
Not Available
11
SWITCH AUX.SHUT-OFF
4110106
$141,74 Unit Price incl. VAT
12
LEVER THROTTLE
5431318067
Not Available
13
RING RETAINING
7710503
$7,34 Unit Price incl. VAT
14
PIN RETAINING
7661624
$23,09 Unit Price incl. VAT
15
GRIP-HEATER ASM HI/LOW
2460311
$115,49 Unit Price incl. VAT
16
SCR-SHSEMS-3/8-16X0.375 GR8 Z
7512465
$7,34 Unit Price incl. VAT
17
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
18
BLOCK HANDLEBAR BLACK
5630187067
$73,49 Unit Price incl. VAT
19
HANDLEBAR Substituted by 5224413-067
5224413
Not Available
20
MASTER CYL.ASM. Substituted by 2050056
2050054
Not Available
21
POST STEERING Substituted by 1823144-067
1823144
Not Available
22
SCREW(10)
7512183
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
