1
Engine displacement
0
2
Year
1992
3
Trim
XLT SP - 0920767
4
Parts Catalog

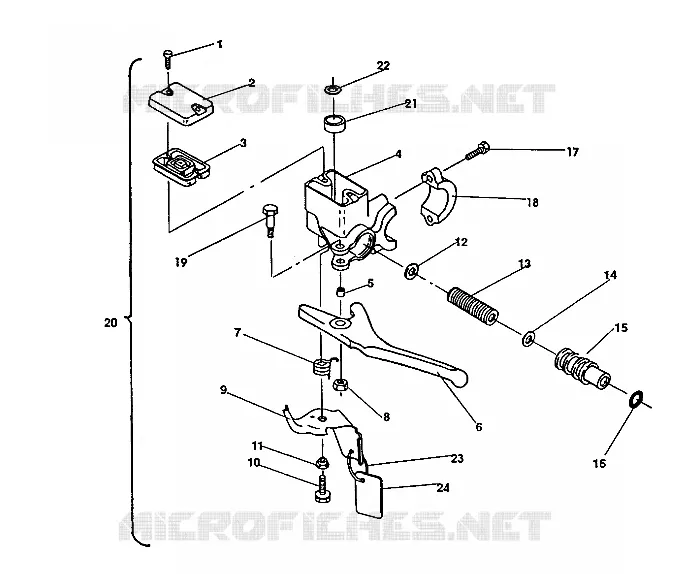

MASTER CYLINDER 500 XLT (4921662166015A)
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION AND SKI 500 XLT (4921662166013A)
by
STEERING HANDLEBAR 500 XLT (4921662166016A)
MASTER CYLINDER 500 XLT (4921662166015A)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
SCREW(10)
7512016
Not Available
2
COVER MASTER CYL.
5630338
Not Available
3
GASKET MASTER CYL.
5410527
$13,64 Unit Price incl. VAT
4
HSG MASTER CYL. Substituted by 5130912
5130790
Not Available
5
BUSHING BRAKE LEVER
5332931
Not Available
6
LEVER BRAKE Substituted by 5630409
5630381
Not Available
7
SPRING PK.BRAKE
7041229
$62,99 Unit Price incl. VAT
8
NUT(10)
7542124
7542122
$2,09 Unit Price incl. VAT
9
LEVER PARK.BRAKE
5222669
Not Available
10
SCREW
7511866
$9,44 Unit Price incl. VAT
11
BUSHING PK.BRAKE LEVER
5020545
Not Available
12
WASHER(10)
7555708
$7,34 Unit Price incl. VAT
13
SPRING COMPRESSION (10)
7041203
$52,49 Unit Price incl. VAT
14
U PACKING SEAL
5410164
$17,84 Unit Price incl. VAT
15
PISTON MASTER CYL.
5020520
Not Available
16
O RING-.549X.755X1.03
5410163
$3,14 Unit Price incl. VAT
17
SCREW SOCKET HEAD
7512290
$9,44 Unit Price incl. VAT
18
CLAMP MASTER CYL.
5630342
Not Available
19
BOLT BRAKE LEVER(10)
7512287
Not Available
20
MASTER CYL.ASM. Substituted by 2050056
2050054
Not Available
21
BAFFLE MASTER CYL.
1930673
Not Available
22
WASHER BAFFLE(10)
1930662
Not Available
23
STRAP PARK.BRAKE TAG
7080447
Not Available
24
TAG-PARK BRAKE WARNING [S99CM][FROM 5/18/2018]
5431389
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
