1
Engine displacement
500
2
Year
1997
3
Trim
SCRAMBLER 500 - W97BC50A
4
Parts Catalog

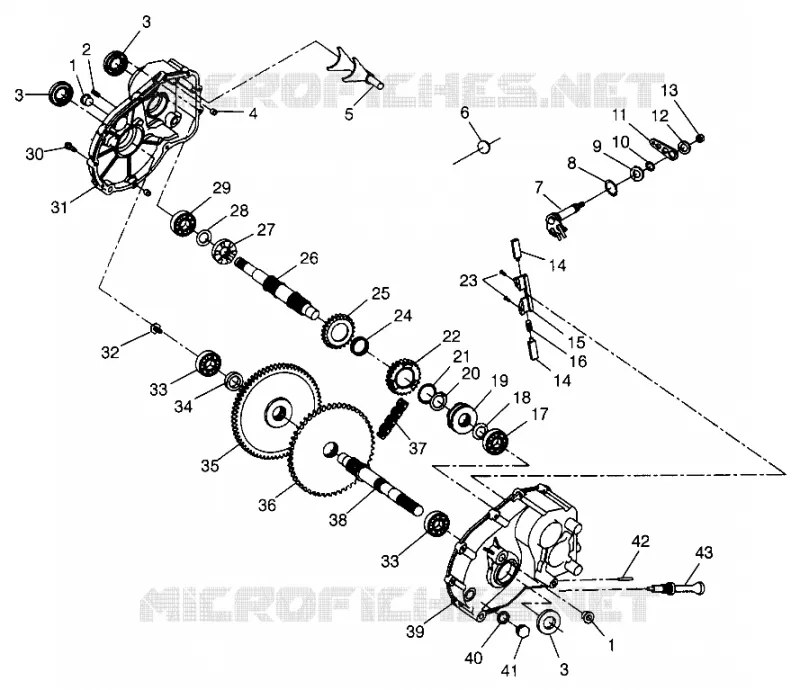

GEARCASE SCRAMBLER 500 W97BC50A (4943074307C009)
5
Parts Diagram
Parts Catalog
ELECTRICAL/TAILLIGHT SCRAMBLER 500 W97BC50A (4943074307C008)
by
GEAR SELECTOR SCRAMBLER 500 W97BC50A (4943074307C011)
GEARCASE SCRAMBLER 500 W97BC50A (4943074307C009)
-
1
1
2
3
3
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
35
36
37
38
39
40
41
42
43
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
14
15
15
16
17
18
-
GEARCASE ASM HI/REV. (Incl. 1-43)
1341214
Not Available
1
BUSHING PIVOT
3233024
Not Available
2
STUD
3233025
Not Available
3
SEAL
3233248
3233788
$57,74 Unit Price incl. VAT
4
PIPE KNOCK
3233021
Not Available
5
FORK SHIFT HR
3233231
Not Available
6
PLUG
3233178
Not Available
7
SHAFT SHIFT WELD/ASM.
3233232
Not Available
8
O-RING
3233179
Not Available
9
WASHER
3233119
Not Available
10
RING RETAINING BASIC EXTERNAL 0.75
3233045
$9,44 Unit Price incl. VAT
11
BELLCRANK HI/REV
3233155
Not Available
12
WASHER
3233054
$12,59 Unit Price incl. VAT
13
NUT
3233055
3233961
$5,24 Unit Price incl. VAT
14
PIN
3233031
$51,44 Unit Price incl. VAT
15
BRACKET
3233030
$34,32 Unit Price incl. VAT
16
SPRING
3233233
Not Available
17
BEARING BALL 6204 20 X 47 X 14
3233018
$47,24 Unit Price incl. VAT
18
WASHER
3233007
Not Available
19
DOG FWD.ENGAGEMENT (Sport)
3233237
Not Available
20
RING RETAINING BASIC EXTERNAL 0.984
3233106
$10,49 Unit Price incl. VAT
21
WASHER
3233105
$13,64 Unit Price incl. VAT
22
SPKT 19T FWD. (Sport)
3233236
Not Available
23
SCREW Substituted by 3233747
3233033
Not Available
24
BEARING NEEDLE 25 X 29 X 10
3233103
$54,59 Unit Price incl. VAT
25
GEAR REVERSE (Sport)
3233235
Not Available
26
SHAFT INPUT
3233181
Not Available
27
DOG REV.ENGAGEMENT (Sport)
3233234
Not Available
28
WASHER
3233099
Not Available
29
BEARING
3233019
$54,59 Unit Price incl. VAT
30
SCREW
3233026
$12,59 Unit Price incl. VAT
31
GEARCASE LH.
3233095
$383,24 Unit Price incl. VAT
32
BUSHING SPEEDO.DRIVE
5020741
$14,48 Unit Price incl. VAT
33
BEARING BALL 6305 C3 25 X 62 X 17
3233020
$80,84 Unit Price incl. VAT
34
VALVE SHOCK
1500032
Not Available
35
GEAR 65T
3233109
Not Available
36
SPROCKET 51T
3233121
Not Available
37
CHAIN SILENT 60P
3233111
$141,74 Unit Price incl. VAT
38
SHAFT OUTPUT
3233461
Not Available
39
GEARCASE RH
3233238
Not Available
40
Washer
3233035
Not Available
41
Plug
3233448
$41,99 Unit Price incl. VAT
42
VENT
3233037
Not Available
43
DIPSTICK Substituted by 3233478
3233115
$52,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
