1
Engine displacement
500
2
Year
1997
3
Trim
SCRAMBLER 500 - W97BC50A
4
Parts Catalog

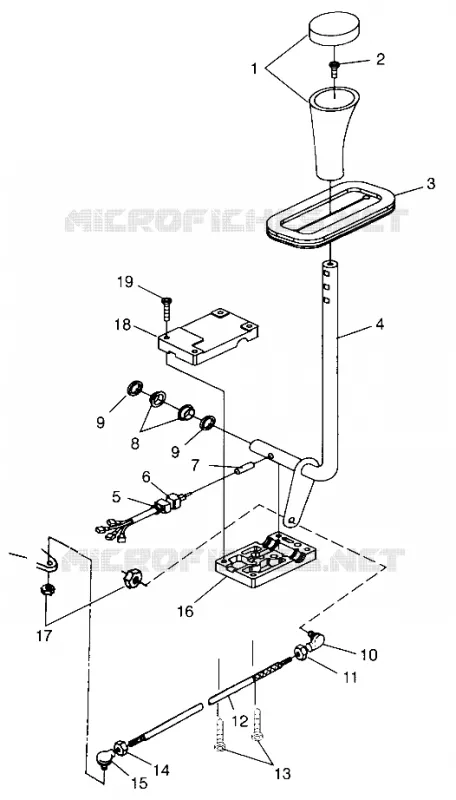

GEAR SELECTOR SCRAMBLER 500 W97BC50A (4943074307C011)
5
Parts Diagram
Parts Catalog
GEARCASE SCRAMBLER 500 W97BC50A (4943074307C009)
by
TOOL KIT SCRAMBLER 500 W97BC50A (4943074307C012)
GEAR SELECTOR SCRAMBLER 500 W97BC50A (4943074307C011)
-
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
1
2
3
4
5
6
7
7
8
8
9
10
10
10
10
11
12
13
14
15
16
17
17
17
17
18
19
-
SELECTOR ASM GEAR (Incl. 1-9 16 18 19)
1341204
Not Available
1
KNOB ASM HI/REV.
3233198
$68,24 Unit Price incl. VAT
2
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
$9,44 Unit Price incl. VAT
3
GROMMET HR SHIFTER
5411008
Not Available
4
HANDLE SUBASM
3233459
Not Available
5
STRAP WIRE
3233090
Not Available
6
SWITCH SNAP ACTION
3233477
$147,51 Unit Price incl. VAT
7
SWITCH SENSOR
3233168
Not Available
8
BEARING
3233169
Not Available
9
O-RING SHAFT [No Longer Available]
1610030
Not Available
10
ROD END LH 6MM.
7061013
$120,74 Unit Price incl. VAT
11
NUT(10)
7546702
$2,09 Unit Price incl. VAT
12
ROD SHIFTLINK.
5020916
$48,92 Unit Price incl. VAT
13
SCR-HXFL-1/4-20X0.5 GR5.1 ZY3
7515133
$7,34 Unit Price incl. VAT
14
NUT-M6X1 HX R.HAND-Y
7546701
$7,34 Unit Price incl. VAT
15
ROD END RH 6MM.
7061014
$120,74 Unit Price incl. VAT
16
PLATE BASE HR SHIFTER
3233170
Not Available
17
Nut FLEXLOC
7546707
7546703
$2,09 Unit Price incl. VAT
18
PLATE TOP HR SHIFTER
3233171
Not Available
19
SCREW Substituted by 3233494
3233064
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
