1
Engine displacement
500
2
Year
1997
3
Trim
SCRAMBLER 500 - W97BC50A
4
Parts Catalog

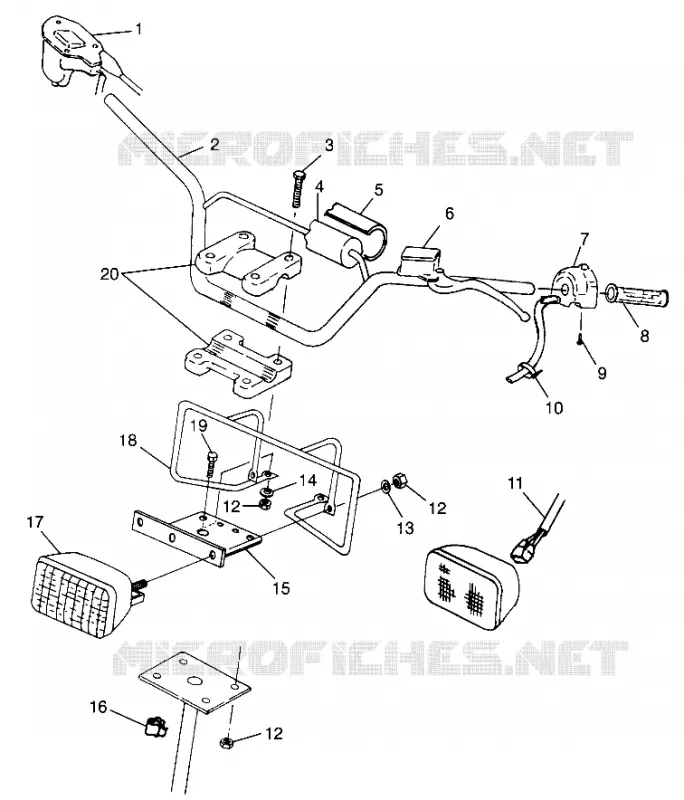

HANDLEBAR HEADLIGHT SCRAMBLER 500 W97BC50A (4943074307B009)
5
Parts Diagram
Parts Catalog
AIR BOX SCRAMBLER 500 W97BC50A (4943074307B008)
by
CENTER TIGHTENER SCRAMBLER 500 W97BC50A (4943074307B014)
HANDLEBAR HEADLIGHT SCRAMBLER 500 W97BC50A (4943074307B009)
1
2
3
4
5
1
7
8
9
10
11
12
12
12
13
14
15
16
17
17
17
17
18
19
20
20
20
20
1
2
3
4
5
1
7
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
HANDLEBAR BLK. Substituted by 1820594-067
1823173067
Not Available
3
SCREW(10)
7515188
$4,19 Unit Price incl. VAT
4
PAD HANDLEBAR
5521181
Not Available
5
COVER ASM H#BAR PAD
2690141
Not Available
6
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
7
SWITCH HI/LOW/OFF LH H#BAR
4110193
$278,24 Unit Price incl. VAT
8
GRIP HANDLEBAR
5431030
5433834-070
$52,49 Unit Price incl. VAT
9
SCREW
2010055
Not Available
10
CLAMP POLY
7080303
Not Available
11
HARNESS H/L HI/LO
2460612
Not Available
12
NUT(10)
7542124
7542122
$2,09 Unit Price incl. VAT
13
WASHER(10) Substituted by 7558402
7555770
7558402
$1,56 Unit Price incl. VAT
14
WASHER(10) Substituted by 7558301
7555776
7558301
$2,09 Unit Price incl. VAT
15
BRKT H/L BLK
5241973067
Not Available
16
CLIP(10)
7080278
$4,71 Unit Price incl. VAT
17
FUSE IGNITION 10 AMP
2431016
Not Available
17
BULB H/L 30/30 W.
4030061
Not Available
18
GUARD H/L BLK.
1040579067
Not Available
19
BOLT(10)
7512269
Not Available
20
Block Handlebar Retainer
5630616067
Not Available
20
Kit Handlebar Block [Incl. Blocks and 7 11 29]
2200774
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
