1
Engine displacement
500
2
Year
1997
3
Trim
SCRAMBLER 500 - W97BC50A
4
Parts Catalog

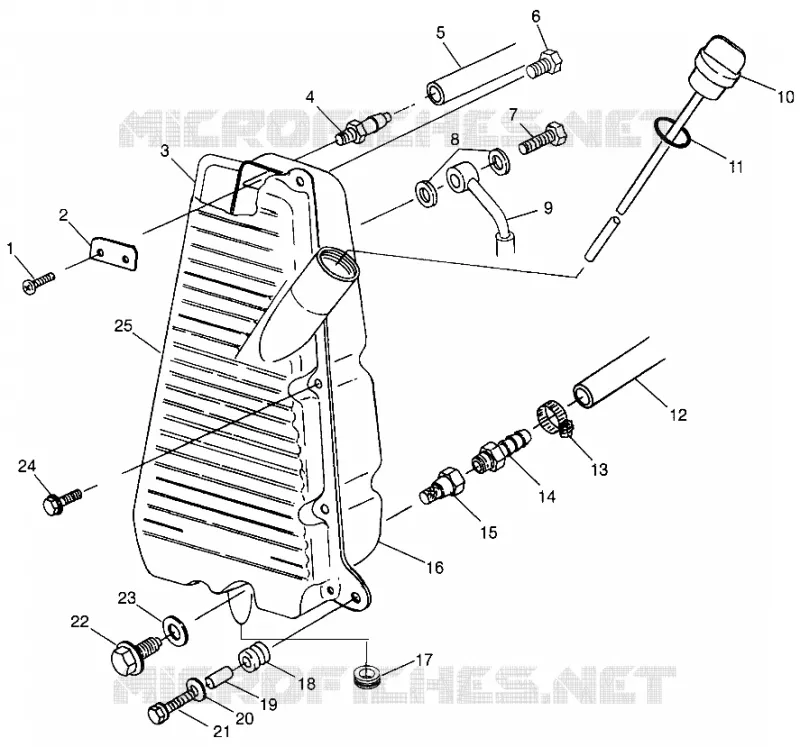

OIL TANK SCRAMBLER 500 W97BC50A (4943074307A014)
5
Parts Diagram
Parts Catalog
FUEL TANK SCRAMBLER 500 W97BC50A (4943074307A013)
by
DECALS SCRAMBLER 500 W97BC50A (4943074307B001)
OIL TANK SCRAMBLER 500 W97BC50A (4943074307A014)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
1
SCR-6X3/8 PH TR HD GR5-Y
7511848
$7,34 Unit Price incl. VAT
2
PLATE VENT OIL TANK
5211523
$22,46 Unit Price incl. VAT
3
GASKET OIL RESERVOIR
5830053
$78,74 Unit Price incl. VAT
4
Fitting
7052163
Not Available
5
LINE BREATHER SPL.
5411346
$21,20 Unit Price incl. VAT
6
PLUG
7051535
Not Available
7
BOLT
7517102
Not Available
8
WASHER COPPER 14MM.
7555896
$2,61 Unit Price incl. VAT
9
TUBE BANJO RETURN
7052152
Not Available
10
DIPSTICK
5432289
Not Available
11
O RING
5410889
Not Available
12
HOSE 3/8#ID
5411036
Not Available
13
CLAMP-HOSE .875-SS
7080474
$13,64 Unit Price incl. VAT
14
FITTING HOSE BR
7052106
$11,01 Unit Price incl. VAT
15
SCREEN OIL FILTER
2530014
$15,95 Unit Price incl. VAT
16
TANK LH OIL (Side Drain)
5131785
$211,56 Unit Price incl. VAT
17
GROMMET
5411042
5412507
$12,59 Unit Price incl. VAT
18
GROMMET MTG RESERVOIR (10)
5410828
$7,34 Unit Price incl. VAT
19
Bushing
5333204
$41,99 Unit Price incl. VAT
20
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
21
SCR-1/4-20X1 1/4-TRIRD HX WH-Y
7512242
$4,19 Unit Price incl. VAT
22
PLUG MAG.12 M.
7051524
$62,99 Unit Price incl. VAT
23
WASHER
5850135
$5,76 Unit Price incl. VAT
24
Screw
7515158
$9,44 Unit Price incl. VAT
25
TANK OIL RH (Side Drain)
5131255
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
