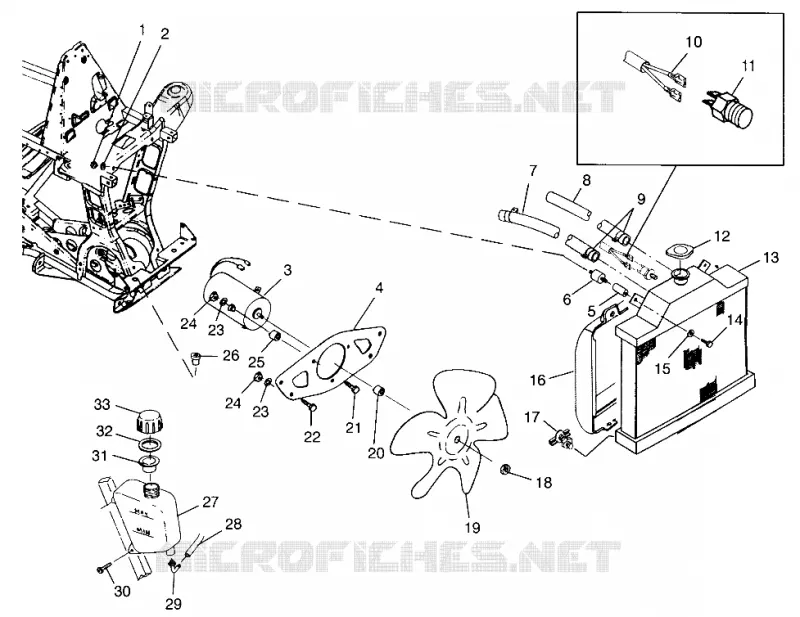

COOLING SYSTEM SCRAMBLER 500 W97BC50A (4943074307A011)
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING SCRAMBLER 500 W97BC50A (4943074307A009)
by
FRONT DRIVE SCRAMBLER 500 W97BC50A (4943074307B002)
COOLING SYSTEM SCRAMBLER 500 W97BC50A (4943074307A011)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
24
25
26
27
28
29
30
31
32
33
1
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
2
WASHER [INTL]
7558301
$2,09 Unit Price incl. VAT
3
MOTOR FAN LIQ.COOLED
4170009
Not Available
4
BRKT FAN MOUNT BLK
5241788067
$11,96 Unit Price incl. VAT
5
SPACER RADIATOR MNT
5020937
Not Available
6
MOUNT RUBBER
3110032
$15,74 Unit Price incl. VAT
7
HOSE WATER 305 CM.
8450050305
Not Available
8
HOSE CHAFE-PROTECTED
5411108
Not Available
9
CLAMP HOSE WORM GEAR 1.25
7080614
$13,64 Unit Price incl. VAT
10
HARNESS FAN/THERM.SWITCH
2460515
Not Available
11
SWITCH THERMAL FAN L/C
4110225
Not Available
12
CAP RADIATOR Substituted by 2511270
2511189
$47,24 Unit Price incl. VAT
13
RADIATOR #U#FLOW
1240015
Not Available
14
BOLT
7512113
$7,34 Unit Price incl. VAT
15
WASHER(10)
7552605
$9,44 Unit Price incl. VAT
16
SHROUD FAN (ATV)
5432593
Not Available
17
VALVE DRAIN COCK
7052181
Not Available
18
NUT
7542154
Not Available
19
BLADE FAN
5240822
$92,28 Unit Price incl. VAT
20
SPACER
5333457
Not Available
21
SCREW
7517221
$3,14 Unit Price incl. VAT
22
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
$2,09 Unit Price incl. VAT
23
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
24
NUT-8-32 NYL-Y
7547004
$9,44 Unit Price incl. VAT
25
SPACER FAN BRKT.
5432294
$6,39 Unit Price incl. VAT
26
BUSHING-MOUNT LOWER RADIATOR
5410584
$10,49 Unit Price incl. VAT
27
TANK SURGE
5431673
5436936
$152,24 Unit Price incl. VAT
28
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
29
FITTING-1/8-27 BARBED 90 DEG
7052065
$13,64 Unit Price incl. VAT
30
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
$2,09 Unit Price incl. VAT
31
PLUG CAP Substituted by 5433774
5431895
5433774
$10,49 Unit Price incl. VAT
32
GASKET-OVERFLOW CAP
5810279
$4,19 Unit Price incl. VAT
33
CAP-OVER FLOW BOTTLE DRILLED
5430743
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
