1
Engine displacement
500
2
Year
1993
3
Trim
EURO 500 EFI - E930674
4
Parts Catalog
CRANKCASE ASSEMBLY 500 EFI/0930674 AND 500 EFI SKS/0930574 (4922962296029A)
5
Parts Diagram
Parts Catalog
BATTERY BOX ASSEMBLY 500 EFI / 0930674 AND 500 EFI SKS / 0930574 (4922962296028A)
by
OIL PUMP ASSEMBLY 500 EFI / 0930674 AND 500 EFI SKS / 0930574 (4922962296035A)

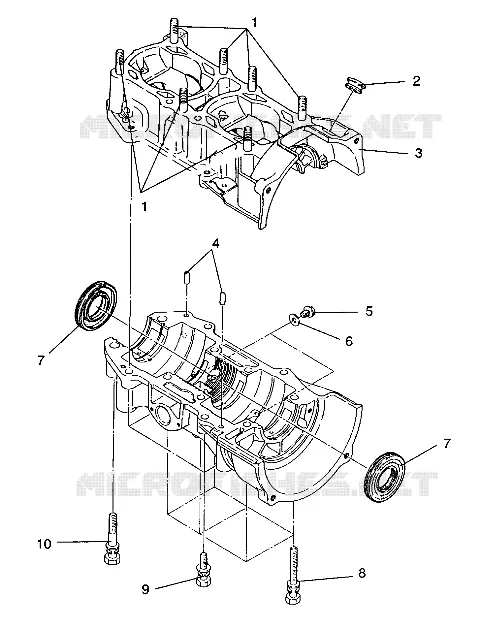

CRANKCASE ASSEMBLY 500 EFI/0930674 AND 500 EFI SKS/0930574 (4922962296029A)
1
STUD Substituted by 3084119
3080745
$17,84 Unit Price incl. VAT
2
GROMMET
3082875
$13,64 Unit Price incl. VAT
3
CRANKCASE ASM. Substituted by 3084609 (Incl. 3-9)
3083793
Not Available
4
PIN DOWEL(10) Substituted by 3080103
3083054
$13,64 Unit Price incl. VAT
5
BOLT FLANGE(10) Substituted by 3087035
3083568
7520710
$7,34 Unit Price incl. VAT
6
GASKET ALUM (10) Substituted by 7555998
3082758
7555998
$2,09 Unit Price incl. VAT
7
SEAL OIL(10)
3083045
$62,99 Unit Price incl. VAT
8
BOLT W/WASHER
3080739
$11,54 Unit Price incl. VAT
9
BOLT&WASHER
3083078
Not Available
10
BOLT&WASHER ASM.
3084220
$15,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
