1
Engine displacement
500
2
Year
1993
3
Trim
EURO 500 EFI - E930674
4
Parts Catalog

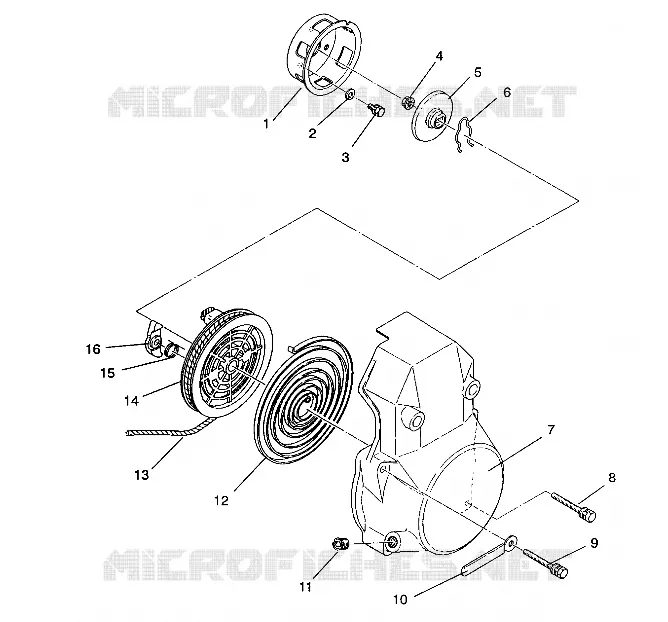

RECOIL STARTER ASSEMBLY 500 EFI / 0930674 AND 500 EFI SKS / 0930574 (4922962296037A)
5
Parts Diagram
Parts Catalog
MAGNETO ASSEMBLY 500 EFI/0930674 AND 500 EFI SKS/0930574 (4922962296036A)
by
EFI PARTS 500 EFI / 0930674 AND 500 EFI SKS / 0930574 (4922962296038A)
RECOIL STARTER ASSEMBLY 500 EFI / 0930674 AND 500 EFI SKS / 0930574 (4922962296037A)
1
PULLEY STARTING
3083312
$68,24 Unit Price incl. VAT
2
WASHER
3082520
$2,61 Unit Price incl. VAT
3
BOLT&WASHER ASM.
3084224
Not Available
4
NUT FLANGE
3083381
Not Available
5
PLATE FRICTION
3083464
Not Available
6
SPRING FRICTION
3083379
$52,49 Unit Price incl. VAT
7
STARTER RECOIL ASM. (Incl. 2-11)
3083461
Not Available
7
CASE STARTER
3083462
Not Available
8
BOLT&WASHER ASSY. (Touring Only)
3083615
Not Available
9
BOLT&WASHER ASM.
3083382
$15,74 Unit Price incl. VAT
10
CLAMP
3083384
Not Available
11
BUSHING ROPE SLIDE
3083107
3040171
$6,08 Unit Price incl. VAT
12
SPRING SPIRAL
3083376
3023393
$278,24 Unit Price incl. VAT
13
ROPE STARTER
2870621
$47,24 Unit Price incl. VAT
14
ASM. REEL
3083377
$104,99 Unit Price incl. VAT
15
SPRING RETURN
3083463
$8,39 Unit Price incl. VAT
16
RATCHET
3083378
$36,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
