1
Engine displacement
500
2
Year
1993
3
Trim
EURO 500 EFI - E930674
4
Parts Catalog
ENGINE MOUNTING 500 EFI / 0930674 AND 500 EFI SKS / 0930574 (4922962296025A)
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH ASSEMBLY 500 EFI / 0930674 AND 500 EFI SKS / 0930574 (4922962296024A)
by
CYLINDER 500 EFI / 0930674 AND 500 EFI SKS / 0930574 (4922962296030A)

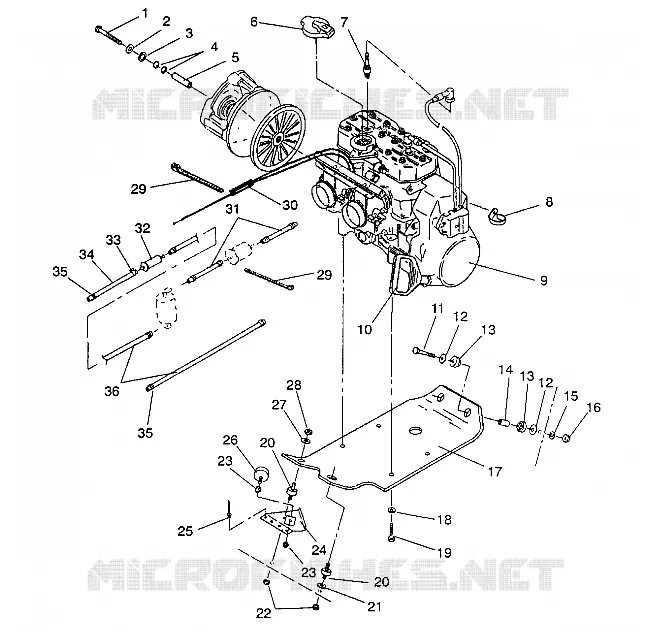

ENGINE MOUNTING 500 EFI / 0930674 AND 500 EFI SKS / 0930574 (4922962296025A)
1
BOLT(10)
7512565
$36,74 Unit Price incl. VAT
2
WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]
7575202
$9,44 Unit Price incl. VAT
3
WASHER CLUTCH RETAINER
5010287
$18,89 Unit Price incl. VAT
4
O-RING CLUTCH BOLT
5410507
$2,09 Unit Price incl. VAT
5
SPACER CLUTCH BOLT
5020513
$60,89 Unit Price incl. VAT
6
CAP PRESSURE
2511155
Not Available
7
SPARKPLUG RN3C(8)
3070166
$7,34 Unit Price incl. VAT
8
ENG.EC50PL-07 [No Longer Available]
1211524
Not Available
9
CLAMP(10) Substituted by 7080573
7080347
7080573
$13,64 Unit Price incl. VAT
10
HANDLE-RECOIL
5430520
Not Available
11
SCREW
7512530
$10,49 Unit Price incl. VAT
12
WASHER FLAT
7555740
$3,14 Unit Price incl. VAT
13
MOUNT ENGINE
5410390
Not Available
14
SPACER (MTR.MT.)
5332778
Not Available
15
WASHER(10)
7555817
Not Available
16
NUT LOCK (10)
7542503
$18,89 Unit Price incl. VAT
17
PLATE ENG.MT.
5222169
Not Available
18
WASHER LOCK(10)
7553101
$7,34 Unit Price incl. VAT
19
BOLT
7512539
$7,34 Unit Price incl. VAT
20
MOUNT
3110022
Not Available
21
WASHER
7555721
$2,09 Unit Price incl. VAT
22
NUT FLEXLOC
7542411
$6,29 Unit Price incl. VAT
23
NUT JAM [ACCESSORY]
7542432
$7,34 Unit Price incl. VAT
24
BRACKET TORQUE LIMITER Substituted by 1012048-067
1011741067
$62,99 Unit Price incl. VAT
25
RIVET (MONOBOLT) Substituted by 7661637
7661620
7661637
$2,09 Unit Price incl. VAT
26
STOP
3110023
Not Available
27
WASHER(10) Substituted by 7555806
7555720
7555806
$1,56 Unit Price incl. VAT
28
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
29
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
30
CABLE THROTTLE Substituted by 7080555
7080403
Not Available
31
FUEL LINE (HI-PRESS.) Substituted by 8450044-153
8450044
8450123-153
$157,49 Unit Price incl. VAT
32
FILTER FUEL (10)
2530008
$10,49 Unit Price incl. VAT
33
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
34
FUEL LINE 1/4"SAE #30R7
8450040
8450040-600
$136,49 Unit Price incl. VAT
35
CLAMP HOSE(SCREW TYPE)
7080417
$17,84 Unit Price incl. VAT
36
FUEL LINE Substituted by 8450045-153
8450045
8450123-153
$157,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
