1
Engine displacement
500
2
Year
1993
3
Trim
EURO 500 EFI - E930674
4
Parts Catalog
EFI PARTS 500 EFI / 0930674 AND 500 EFI SKS / 0930574 (4922962296038A)
5
Parts Diagram
Parts Catalog
RECOIL STARTER ASSEMBLY 500 EFI / 0930674 AND 500 EFI SKS / 0930574 (4922962296037A)
by
HITCH ASSEMBLY European 440,440 SKS,500 EFI,EFI SKS, RXL SKS,Sport,Trail,XL (49237723770004)

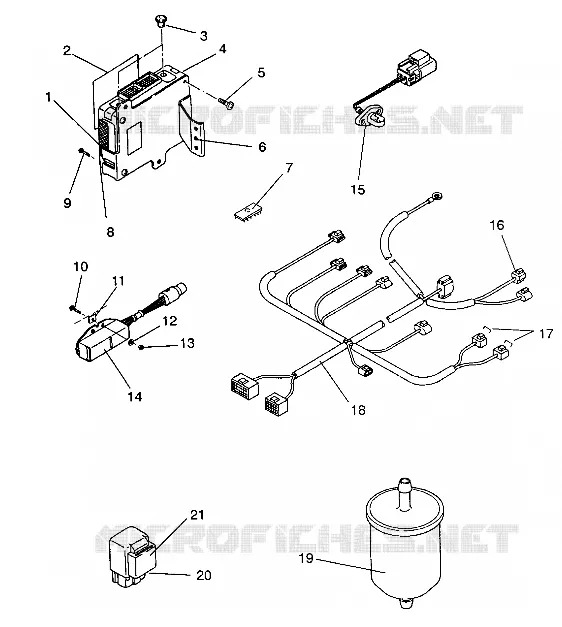

EFI PARTS 500 EFI / 0930674 AND 500 EFI SKS / 0930574 (4922962296038A)
1
CONTROL UNIT Substituted by 2410030 (Incl. 3 5 6)
3084482
Not Available
1
ECU ASM W/O CHIP
2410030
Not Available
2
DECAL EFI COVER [No Longer Available]
7072909
Not Available
3
PLUG RUBBER
3084396
Not Available
4
GASKET
3084487
Not Available
5
SCREW
3084395
Not Available
6
COVER ECU BOTTOM
3084485
Not Available
7
CHIP ROM (93#500#EFI) Substituted by 4040051
4040037
Not Available
7
CHIP ROM EFI (94-#500#)
4040043
Not Available
8
COVER ECU UPPER
3084486
Not Available
9
SCREW
3084388
Not Available
10
SCR-RHCAR-1/4-20X0.75 GR5 ZY3
7512193
$4,19 Unit Price incl. VAT
11
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
12
WASHER-.5X.262X.06(16 GA)-Y
7555827
$7,34 Unit Price incl. VAT
13
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
14
RESISTOR ASM (DROPPPING)
3084354
Not Available
15
SENSOR AIR TEMP.
3084105
Not Available
16
LINK FUSE
3084113
Not Available
17
CLIP WIRE
3084488
Not Available
18
HARNESS ASM.
3084483
Not Available
19
FILTER FUEL ASM.
3084110
Not Available
20
RELAY 1 ASM.
3084484
Not Available
21
MOUNT RUBBER
3084489
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
