1
Engine displacement
500
2
Year
1993
3
Trim
EURO 500 EFI - E930674
4
Parts Catalog
CONSOLE 500 EFI/0930674 AND 500 EFI SKS/0930574 (4922962296009A)
5
Parts Diagram
Parts Catalog
HOOD
by
FRONT SUSPENSION AND SKI 500 EFI/0930674 AND 500 EFI SKS/0930574 (4922962296011A)

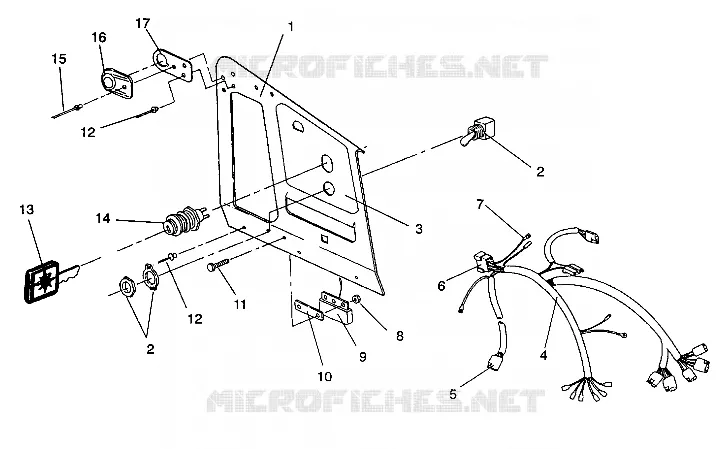

CONSOLE 500 EFI/0930674 AND 500 EFI SKS/0930574 (4922962296009A)
1
DESC NOT_AVAILABLE
5222759
Not Available
1
CONSOLE
5222756067
Not Available
2
SW HEATER HI-LOW (650 & 500 Classic Only)
4110077
Not Available
3
DECAL CONSOLE [No Longer Available]
7073073
Not Available
4
HARNESS MAIN (EURO 500)
2460407
Not Available
4
HARNESS MAIN WIRE(93-500SP)
2460375
Not Available
5
HOUSING RECEPTACLE
4020062
Not Available
6
HOUSING W/RECEPTACLE
4020057
$5,66 Unit Price incl. VAT
7
HSG 1 CIRCUIT
4020106
Not Available
8
NUT-NYLOC 10-24 Y
7541925
$1,56 Unit Price incl. VAT
9
REGULATOR VOLTAGE
4060092
2203873
$188,99 Unit Price incl. VAT
10
HEAT SINK
5210650
Not Available
11
BOLT
7512007
$7,34 Unit Price incl. VAT
12
RIVET Substituted by 7661638
7661625
7661638
$2,09 Unit Price incl. VAT
13
CAP W/KEY NOTE: WHEN ORDERING IGNITION KEY PN 5410611 BE SURE TO SPECIFY IF FOR AN A B C D OR E SWITCH. LETTER CODE WILL BE LABELED ON UNDERSIDE OF SWITCH BODY BEHIND CONSOLE. KEY DOT CODE FOUND O
5410611
Not Available
14
KIT IGN. SWITCH (Incl. 6 7 9)
2200357
Not Available
15
RIVET (50)
7621477
$2,09 Unit Price incl. VAT
16
GUIDE RECOIL
5431385
$19,94 Unit Price incl. VAT
17
BRKT ROPE GUIDE BLK.
5222682067
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
