1
Engine displacement
500
2
Year
2006
3
Trim
SPORTSMAN 500 EFI - A06MH50AQ
4
Parts Catalog

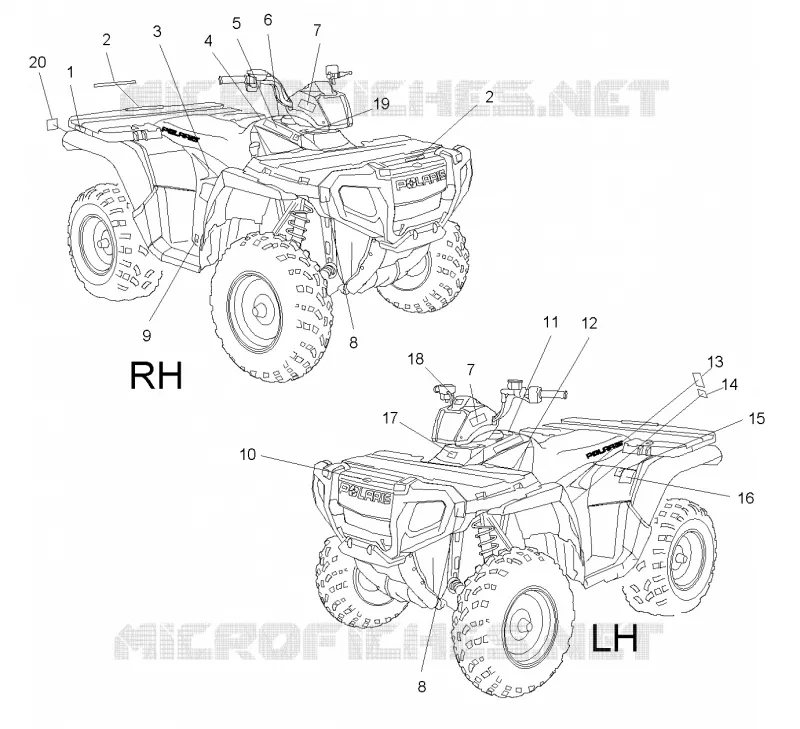

DECALS
5
Parts Diagram
Parts Catalog
REAR RACK MOUNTING
by
FUEL TANK
DECALS
1
2
2
3
3
3
3
3
3
3
3
3
3
4
5
5
5
5
6
7
7
7
7
7
7
8
8
8
8
9
10
11
12
12
12
12
12
12
12
12
12
12
13
14
15
16
17
18
19
20
1
Decal Reflector Red
7172689
Not Available
2
DECAL WARNING FRONT AND REAR RACK [ON REAR RACK ONLY]
7172572
Not Available
3
Decal Rear Cab #AWD# RH [AQ]
7173547
Not Available
3
Decal Rear Cab #AWD# RH [AX][AZ]
7173148
Not Available
3
Decal Rear Cab #AWD# LH [AL]
7174214
Not Available
3
Decal Rear Cab #AWD# LH [AY]
7173594
Not Available
3
Decal Rear Cab #AWD# LH [AT]
7174311
Not Available
3
Decal Rear Cab #AWD# LH [AQ]
7173546
Not Available
3
Decal Rear Cab #AWD# RH [AT]
7174312
Not Available
3
Decal Rear Cab #AWD# RH [AY]
7173595
Not Available
3
Decal Rear Cab #AWD# RH [AL]
7174215
Not Available
3
Decal Rear Cab #AWD# LH [AX][AZ]
7173147
Not Available
4
Decal Warning Age
7172559
Not Available
5
Decal #SPORTSMAN# RH [AL]
7174211
Not Available
5
Decal #SPORTSMAN# RH [AL][AX][AY][AZ]
7173146
Not Available
5
Decal #SPORTSMAN# LH [AL]
7174210
Not Available
5
Decal #SPORTSMAN# LH [AL][AX][AY][AZ]
7173145
Not Available
6
Decal Warning AWD Switch
7079780
Not Available
7
Decal Pod #EFI#
7173593
Not Available
7
Decal Headlight Pod #EFI# [AT]
7174313
Not Available
7
Decal Headlight Pod #EFI# [AQ]
7173545
Not Available
8
Decal Amber Reflector RH
7172688
Not Available
8
Decal Amber Reflector LH
7172687
Not Available
9
Decal Drain Recoil
7172562
Not Available
10
LOGO-POLARIS STAR
7078465
$23,09 Unit Price incl. VAT
11
Decal Warning Override AWD
7172564
Not Available
12
Decal Tank Side #HUNTER 500# RH [AT]
7174307
Not Available
12
Decal Tankside #500# RH [AW]
7173390
Not Available
12
Decal Tank Side RH [AL]
7174213
$41,04 Unit Price incl. VAT
12
Decal Tank Side #500# RH [AQ]
7173551
Not Available
12
Decal Tankside #500# RH [AU]
7173597
Not Available
12
Decal Tank Side LH [AL]
7174212
Not Available
12
Decal Tank Side #500# LH [AQ]
7173550
Not Available
12
Decal Tankside #500# LH [AU]
7173596
Not Available
12
Decal Tank Side #HUNTER 500# LH [AT]
7174306
Not Available
12
Decal Tankside #500# LH [AW]
7173389
Not Available
13
Decal Warning General CPSC
7172560
Not Available
14
Decal Discretional Warning
7172561
Not Available
15
Decal Passenger Warning
7172566
Not Available
16
Decal Tire Pressure/Load
7172748
Not Available
17
Decal #New Break Up# Cover Front [AQ][AT]
7174067
Not Available
18
Decal #BUCKHEAD# Pod Upper [AT]
7174314
Not Available
19
Decal #BUCKHEAD# Tank Side [AT]
7174315
Not Available
20
Decal #BUCKHEAD# Cab Rear [AT]
7174316
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
