1
Engine displacement
500
2
Year
2006
3
Trim
SPORTSMAN 500 EFI - A06MH50AQ
4
Parts Catalog
STARTING MOTOR
5
Parts Diagram
Parts Catalog
FUEL INJECTION
by
GUN BOOT

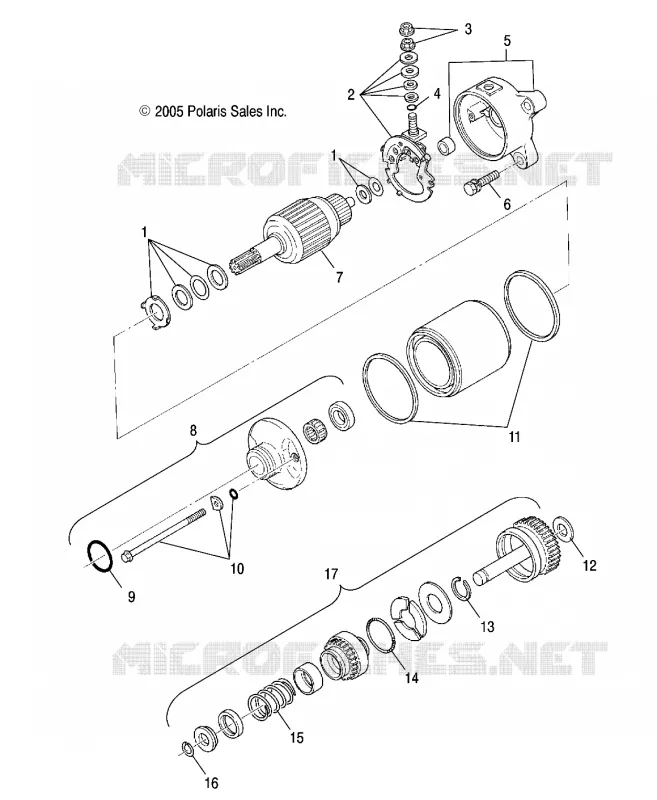

STARTING MOTOR
-
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
2
3
4
5
5
6
6
7
7
8
8
9
9
10
11
12
13
13
14
15
16
-
MOTOR STARTING * (Incl. 2-6 8-12)
3084981
$621,59 Unit Price incl. VAT
1
WASHER SET
3084982
Not Available
2
BRUSH COMPL.2-POLE *
3084406
$230,99 Unit Price incl. VAT
3
NUT FLANGE(10)
3083649
$7,34 Unit Price incl. VAT
4
O-RING
3084408
Not Available
5
COVER REAR STARTER(MAGNUM)
3085034
$173,24 Unit Price incl. VAT
6
ASM. BOLT AND WASHER
3082038
$7,34 Unit Price incl. VAT
7
ARMATURE ASM.
3085353
Not Available
8
COVER FRT STARTER(MAGNUM) * (Incl. 10)
3085033
$272,99 Unit Price incl. VAT
9
O-Ring
3088161
$10,49 Unit Price incl. VAT
10
BOLT ASM SET (Incl. 6)
3084983
$41,99 Unit Price incl. VAT
11
RING RUBBER
3084405
Not Available
12
WASHER GEARSHAFT Substituted by 7555908
3083737
7556994
$6,29 Unit Price incl. VAT
13
CLIP
3084412
$17,84 Unit Price incl. VAT
14
SPRING WEIGHT
3084411
$25,08 Unit Price incl. VAT
15
SPRING RETURN
3084410
$3,98 Unit Price incl. VAT
16
CLIP
3084409
$13,64 Unit Price incl. VAT
17
Asm. Gear Shaft [Incl. 14-17]
3087030
$456,74 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
