1
Engine displacement
500
2
Year
2006
3
Trim
SPORTSMAN 500 EFI - A06MH50AQ
4
Parts Catalog
DRIVE SHAFT, FRONT
5
Parts Diagram
Parts Catalog
GEAR SELECTOR
by
TORSION BAR

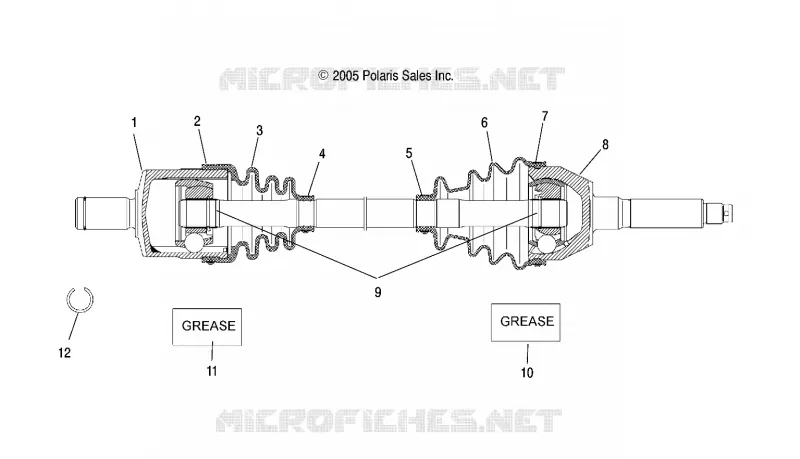

DRIVE SHAFT, FRONT
-
1
2
3
3
4
5
6
6
7
8
9
10
11
12
-
1
2
3
4
5
6
7
8
9
10
11
12
-
Asm. Drive Shaft Front (If built before 9/05/05)
1332422
Not Available
1
Joint Plunging [Incl. 11]
1590413
$384,29 Unit Price incl. VAT
2
Clamp Large
7710580
$13,64 Unit Price incl. VAT
3
Boot Gear Side
1332364
Not Available
3
Kit Boot Gear Side [Incl. 6-9]
2202910
Not Available
4
Clamp Small
7710579
Not Available
5
Clamp Small
1350061
$9,44 Unit Price incl. VAT
6
Kit Boot Wheel Side [Incl. 2-5]
2201630
$125,99 Unit Price incl. VAT
6
Boot CV Joint
5411106
Not Available
7
Clamp Large
1350062
$14,69 Unit Price incl. VAT
8
CV-Joint
1590372
$318,14 Unit Price incl. VAT
9
Ring Retaining
1332434
Not Available
10
Grease 30g
1350046
$27,29 Unit Price incl. VAT
11
Grease 50g
1350047
$27,29 Unit Price incl. VAT
12
Circlip
1350085
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
