1
Engine displacement
500
2
Year
2006
3
Trim
SPORTSMAN 500 EFI - A06MH50AQ
4
Parts Catalog
FRONT WHEEL
5
Parts Diagram
Parts Catalog
GEARCASE INTERNALS
by
FRONT HOUSING (DEMAND DRIVE)

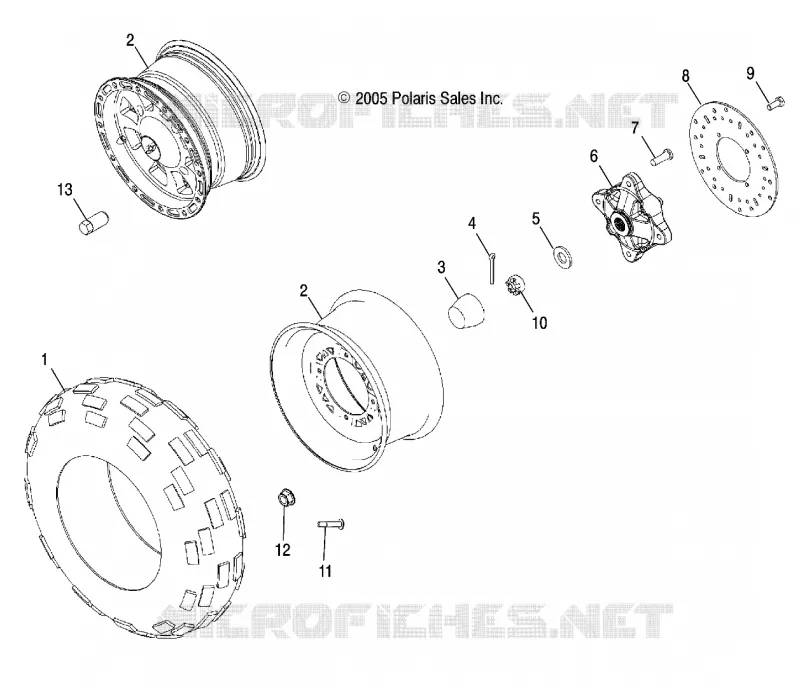

FRONT WHEEL
1
2
2
2
2
2
2
3
4
5
6
7
7
8
9
10
11
12
13
1
2
2
3
4
5
6
6
7
7
8
9
10
10
11
12
13
1
Tire Front 26x8-12
5412660
5419039
$269,84 Unit Price incl. VAT
2
Rim Front
1520898
Not Available
2
Rim Front NBU [AT]
1520269455
Not Available
2
Rim Front Black (AC)(AD) [TO 9/1/2023]
1520269067
1523448-067
$158,54 Unit Price incl. VAT
3
DUSTCOVER HUB
5411164
5413427
$52,49 Unit Price incl. VAT
4
COTTER PIN-1/8 X 1 1/4-Y
7661402
$3,14 Unit Price incl. VAT
5
WASHER
7556004
$13,64 Unit Price incl. VAT
6
Hub Wheel AWD
5134310
5143612
$157,49 Unit Price incl. VAT
7
STUD-3/8-24X1.38 PRESS FIT-Z
7518378
$3,14 Unit Price incl. VAT
7
STUD(10)
7515513
$2,09 Unit Price incl. VAT
8
DISC-BRAKE 8.95 OD .158
5244314
$141,74 Unit Price incl. VAT
9
SCR-HH-5/16-18X0.75 GR5 ZY3 NY
7512325
$4,19 Unit Price incl. VAT
10
NUT SLOTTED
7542810
$5,76 Unit Price incl. VAT
11
VALVE-RIM
1525017
$12,59 Unit Price incl. VAT
12
NUT-FLANGE TWO PIECE 3/8-24
7547237
$4,19 Unit Price incl. VAT
13
NUT-3/8-24-WHEEL
7547309
$6,81 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
