1
Engine displacement
500
2
Year
2006
3
Trim
SPORTSMAN 500 EFI - A06MH50AQ
4
Parts Catalog

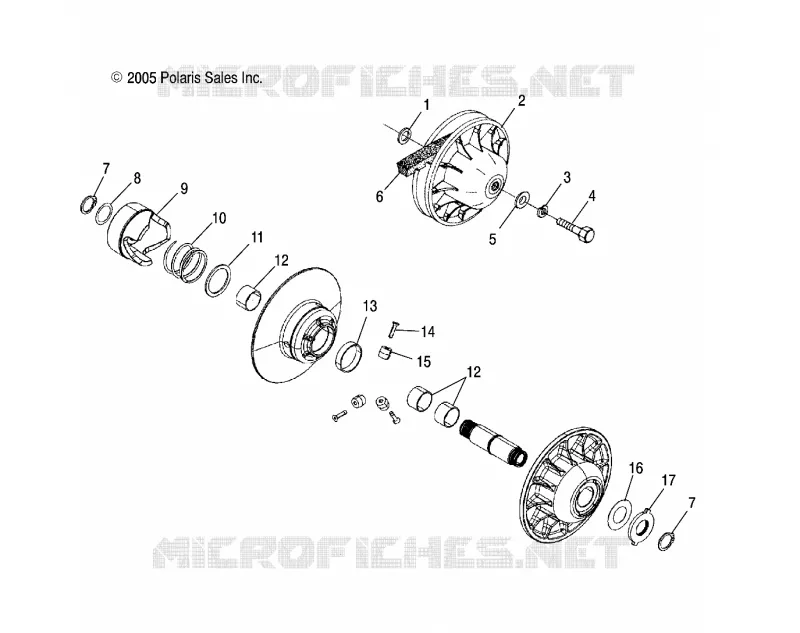

DRIVEN CLUTCH
5
Parts Diagram
Parts Catalog
STEERING POST
by
ELECTRICAL
DRIVEN CLUTCH
1
2
3
4
5
6
7
7
8
9
10
11
12
12
13
14
15
16
17
1
BUSHING-.906 X 1 3/8 X 16 GA-Y
7556120
$2,09 Unit Price incl. VAT
2
Asm. Driven Clutch EBS [Incl. 11-15](If built after 7/01/03)
1322408
Not Available
3
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
4
BOLT(10)
7515327
$10,49 Unit Price incl. VAT
5
WASHER DOMED
5220646
$4,19 Unit Price incl. VAT
6
Belt Drive
3211091
$136,49 Unit Price incl. VAT
7
Ring Retaining
7710448
$5,76 Unit Price incl. VAT
8
SPACER-1.350 X 1.750 X .020-Y
5210752
$3,14 Unit Price incl. VAT
9
RAMP STA.BRAKE 4STRK MACH
5131674
$152,24 Unit Price incl. VAT
10
Spring
7041635
$89,24 Unit Price incl. VAT
11
WASHER-2.06X2.62X.105-Y [BJ/BK/BX/B9]
5211115
$7,34 Unit Price incl. VAT
12
Bearing Moveable 1 Inch
3576511
$52,49 Unit Price incl. VAT
13
Bearing
3585710
$34,64 Unit Price incl. VAT
14
Screw
7517323
$25,19 Unit Price incl. VAT
15
Roller Taper
1321977
$54,59 Unit Price incl. VAT
16
WASHER
7556203
Not Available
17
Plate (1322407)(If built after 8/12/03)
5247804
$20,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
