1
Engine displacement
0
2
Year
1995
3
Trim
star-lite-0953427
4
Parts Catalog
BLOWER HOUSING 0953427 (4928902890D010)
5
Parts Diagram
Parts Catalog
MAGNETO ASSEMBLY LITE 0953433, STARLITE 0953427 AND LITE DELUXE 0953431 (4928902890D005)
by
STARTING MOTOR ASSEMBLY LITE DELUXE 0953431 (4928902890D011)

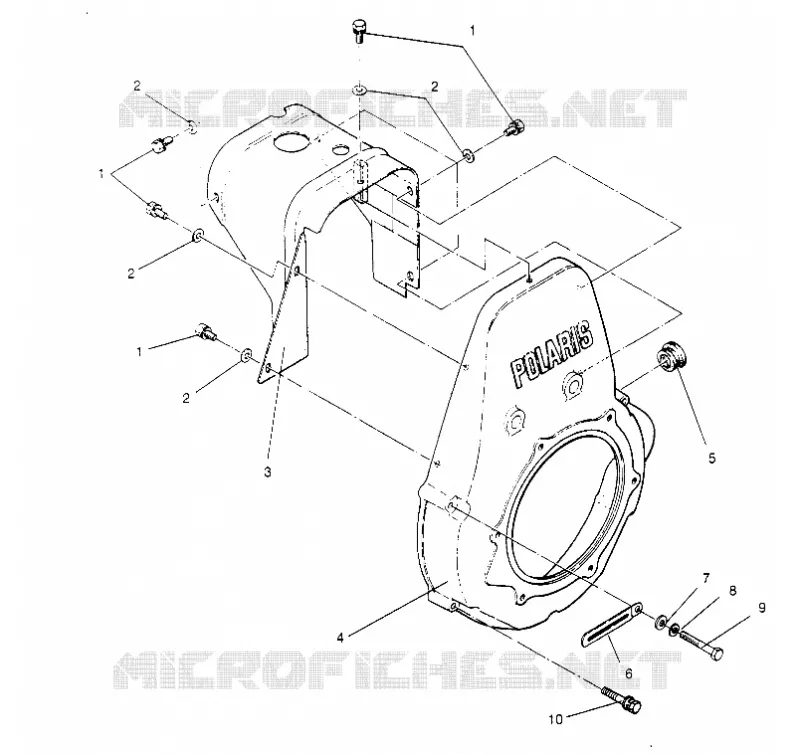

BLOWER HOUSING 0953427 (4928902890D010)
1
BOLT & WASHER ASM.(10)
3082609
Not Available
2
WASHER
3082520
$2,61 Unit Price incl. VAT
3
BAFFLE CYL.
3083417
Not Available
4
HOUSING BLOWER
3084293
Not Available
5
GROMMET
3082875
$13,64 Unit Price incl. VAT
6
CLAM(10)
3083187
Not Available
7
WASHER(10)
3080078
Not Available
8
WASHER SPRING(10)
3080077
$4,19 Unit Price incl. VAT
9
ASM. BOLT AND WASHER
3082030
7520783
$7,34 Unit Price incl. VAT
10
BOLT
3080109
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
