1
Engine displacement
0
2
Year
1995
3
Trim
star-lite-0953427
4
Parts Catalog

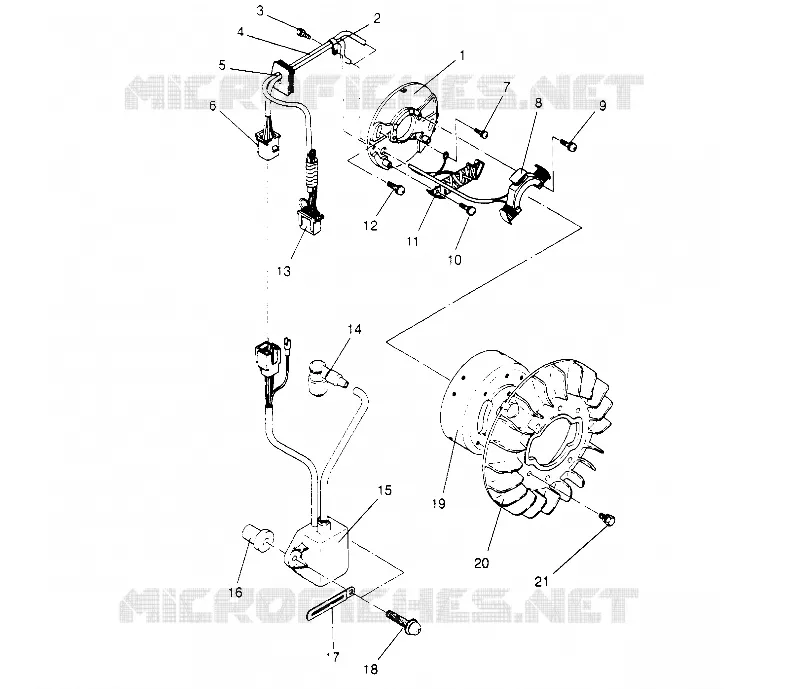

MAGNETO ASSEMBLY STARLITE 0953427 (4928902890D006)
5
Parts Diagram
Parts Catalog
CARBURETOR LITE 0953433 AND LITE DELUXE 0953431 (4928902890D001)
by
FUEL PUMP LITE 0953433, STARLITE 0953427 AND LITE DELUXE 0953431 (4928902890D007)
MAGNETO ASSEMBLY STARLITE 0953427 (4928902890D006)
1
PLATE ASM. (Incl. 1-9 13-15)
3084294
Not Available
1
PLATE COIL
3083634
$119,16 Unit Price incl. VAT
2
CLAMP
3081296
Not Available
3
SCREW&WASHER (10)
3081260
Not Available
4
HARNESS WIRE
3084295
Not Available
5
GROMMET
3082969
Not Available
6
COUPLER 3P
3083323
Not Available
7
SCREW&WASHER ASM(10)
3081256
$6,29 Unit Price incl. VAT
8
COIL LIGHT(STATOR 1)
3083976
Not Available
9
SCREW&WASHER ASM.(10)
3083736
$2,09 Unit Price incl. VAT
10
SCREW & WASHER
3083423
$6,29 Unit Price incl. VAT
11
COIL EXCITING
3083422
Not Available
12
SCREW & WASHER ASSY(10)
3081972
Not Available
13
COUPLER MALE
3081513
$36,74 Unit Price incl. VAT
14
CAP SPARK PLUG (10)
4020129
4083595
$52,49 Unit Price incl. VAT
15
CDI UNIT
3083722
Not Available
16
NUT-RUBBER
3083240
Not Available
17
CLAM(10)
3083187
Not Available
18
SCREW AND WASHER
3083784
$4,19 Unit Price incl. VAT
19
FLYWHEEL (Incl. 11-12)
3083997
Not Available
20
BLOWER
3081269
Not Available
21
BOLT W/WASHER
3081270
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
