1
Engine displacement
0
2
Year
1995
3
Trim
star-lite-0953427
4
Parts Catalog

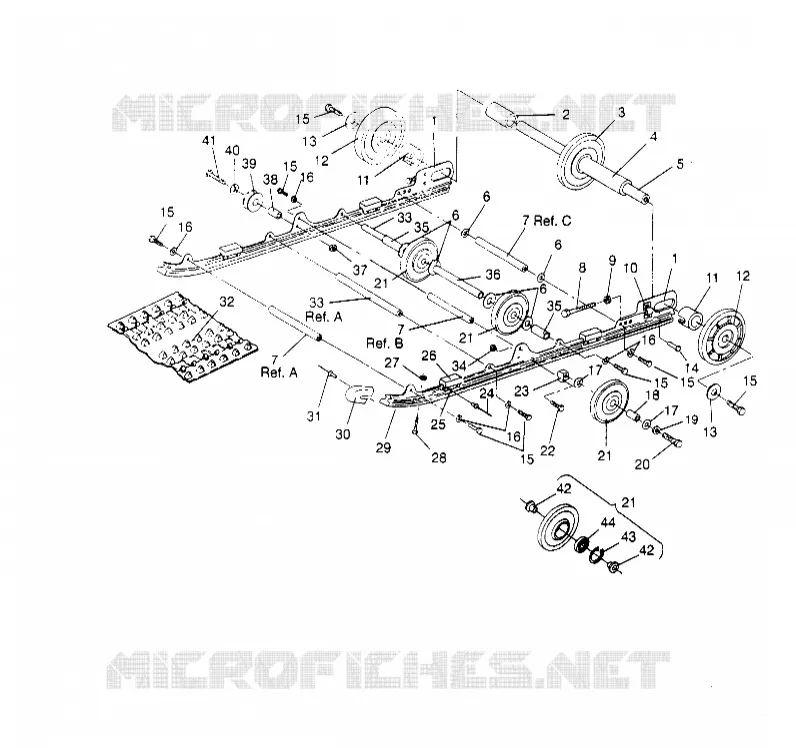

SUSPENSION ASSEMBLY LITE 0953433, STARLITE 0953427 AND LITE DELUXE 0953431 (4928902890B009)
5
Parts Diagram
Parts Catalog
DRIVE TRAIN ASSEMBLY LITE 0953433, STARLITE 0953427 AND LITE DELUXE 095343 (4928902890B008)
by
FRONT TORQUE ARM LITE 0953433, STARLITE 0953427 AND LITE DELUXE 0 (4928902890B011)
SUSPENSION ASSEMBLY LITE 0953433, STARLITE 0953427 AND LITE DELUXE 0953431 (4928902890B009)
1
RAIL ASM RH SILVER (Incl. 64-66 70-72)
1540554
Not Available
1
RAIL ASM LH SILVER (Incl. 64-66 70-72) (400)
1540553
Not Available
2
SPACER INNER IDLER
5010169
Not Available
3
WHEEL IDLER Substituted by 1594079-070
1594021
Not Available
4
SPACER IDLER R.INNER
5333086
Not Available
5
SHAFT IDLER
5020722
Not Available
6
BUSHING-.781 X1.250X.060-Y
7556301
$6,29 Unit Price incl. VAT
7
SHAFT PIVOT ARM
5020723
$47,24 Unit Price incl. VAT
8
BOLT ADJUSTER(10)
7515455
$41,99 Unit Price incl. VAT
9
NUT
7542440
7542404
$3,14 Unit Price incl. VAT
10
BLOCK IDLER BOLT ADJUSTING
5130530
$62,99 Unit Price incl. VAT
11
SPACER-IDLER-OUTER
5332641
Not Available
12
WHEEL IDLER PURPLE#C# (LIte)
1594060
Not Available
12
WHEEL IDLER TEAL
1594050
Not Available
12
WHEEL IDLER BLUE (500 Only)
1594038
Not Available
13
WASHER(10) Substituted by 7556130
7571629
7556130
$11,54 Unit Price incl. VAT
14
RIVET
7621501
$4,19 Unit Price incl. VAT
15
BOLT(10)
7515526
7517731
$2,09 Unit Price incl. VAT
16
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
17
WASHER
7555804
$7,34 Unit Price incl. VAT
18
SPACER
5332786
$13,64 Unit Price incl. VAT
19
WASHER SPLIT LOCK
7553201
$7,34 Unit Price incl. VAT
20
SCREW
7512659
$13,64 Unit Price incl. VAT
21
WHEEL IDLER
1543018
$115,49 Unit Price incl. VAT
22
SCR-HH-3/8-24X5.5 GR5 ZY3
7512404
$7,34 Unit Price incl. VAT
23
BRACKET BOGIE WHEEL
5130570
$89,24 Unit Price incl. VAT
24
RIVET
7621476
$2,09 Unit Price incl. VAT
25
ANGLE REINFORCEMENT BUMPER
5222629
$26,24 Unit Price incl. VAT
26
BUMPER SUSPENSION
5810554
$15,74 Unit Price incl. VAT
27
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
28
SCREW
7512227
$6,29 Unit Price incl. VAT
29
SLIDER BLACK(2) (Black) (500 Classic Only)
5521320
Not Available
30
COVER RAIL TIP
5430627
$62,99 Unit Price incl. VAT
31
RIVET
7621435
$2,09 Unit Price incl. VAT
32
TRACK (#LITE#94)
5410792
Not Available
33
SHAFT PIVOT ARM
5020724
$47,24 Unit Price incl. VAT
34
Nut
7542403
Not Available
35
SPACER OUTER
5332784
Not Available
36
TUBE SUSPENSION
5332783
Not Available
37
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
38
SPACER
5332787
Not Available
39
ROLLER-SPRING
5430540
Not Available
40
WASHER(10)
7555743
Not Available
41
BOLT Substituted by 7515491
7515433
$3,14 Unit Price incl. VAT
42
INSERT WHEEL
5431531
$19,94 Unit Price incl. VAT
43
RING RETAINING
7718407
$9,44 Unit Price incl. VAT
44
BEARING CHAINCASE
3514305
$34,64 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
