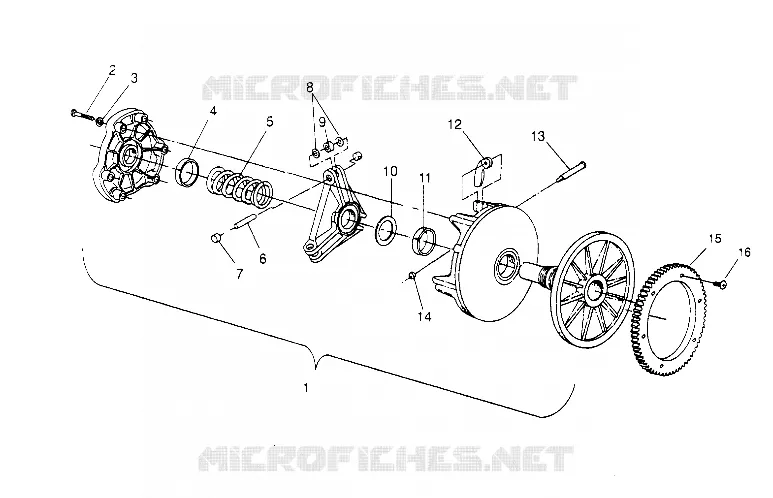

DRIVE CLUTCH ASSEMBLY LITE 0953433, STARLITE 0953427 AND LITE DELUXE 09534 (4928902890B013)
5
Parts Diagram
Parts Catalog
CHAINCASE ASSEMBLY LITE 0953433, STARLITE 0953427 AND LITE DELUXE 0953431 (4928902890B007)
by
DRIVEN CLUTCH ASSEMBLY LITE 0953433, STARLITE 0953427 AND LITE DELUXE 0953 (4928902890B014)
DRIVE CLUTCH ASSEMBLY LITE 0953433, STARLITE 0953427 AND LITE DELUXE 09534 (4928902890B013)
1
CLUTCH BASIC #42(DRIVE) (Less 5 12)
1321596
Not Available
2
BOLT (10)
7512265
$7,34 Unit Price incl. VAT
3
WASHER SPRING LOCK
7552801
$3,14 Unit Price incl. VAT
4
BEARING COVER (10)
3576510
$16,79 Unit Price incl. VAT
5
SPRING-(ORANGE) (Orange) (Star)
7041060
Not Available
5
SPRING CLUTCH SIL/GOLD (Silver/Gold)
7041286
$115,49 Unit Price incl. VAT
6
PIN-ROLLER
5020422
$4,19 Unit Price incl. VAT
7
BUTTON GUIDE
5430445
$11,54 Unit Price incl. VAT
8
WASHER
5430945
5438247
$3,14 Unit Price incl. VAT
9
ASM-ROLLER AND BUSHING
1321457
$73,49 Unit Price incl. VAT
10
SPACER-1.350 X 1.750 X .020-Y
5210752
$3,14 Unit Price incl. VAT
10
SPACER-1.350 X 1.750 X .050-Y
5210754
$6,29 Unit Price incl. VAT
10
SPACER-1.350X1.750X.032-Y
5210753
$4,19 Unit Price incl. VAT
11
Bearing Moveable (1/2 inch)
3576504
$41,99 Unit Price incl. VAT
12
WEIGHT .010(6) Substituted by 1321526 (10) (TRAIL)
5630272
$73,49 Unit Price incl. VAT
12
WEIGHT #10M RED(6) Substituted by 1321530 (10) (Star)
5630325
Not Available
13
PIN HARDENED WEIGHT
7515105
$26,24 Unit Price incl. VAT
14
NUT-10-24-FLEX LOC-Z
7541906
$6,29 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
