Engine displacement
500
2
Year
2002
3
Trim
MAGNUM 500 2X4 HDS - A02CB50FC
4
Parts Catalog
STARTING MOTOR
5

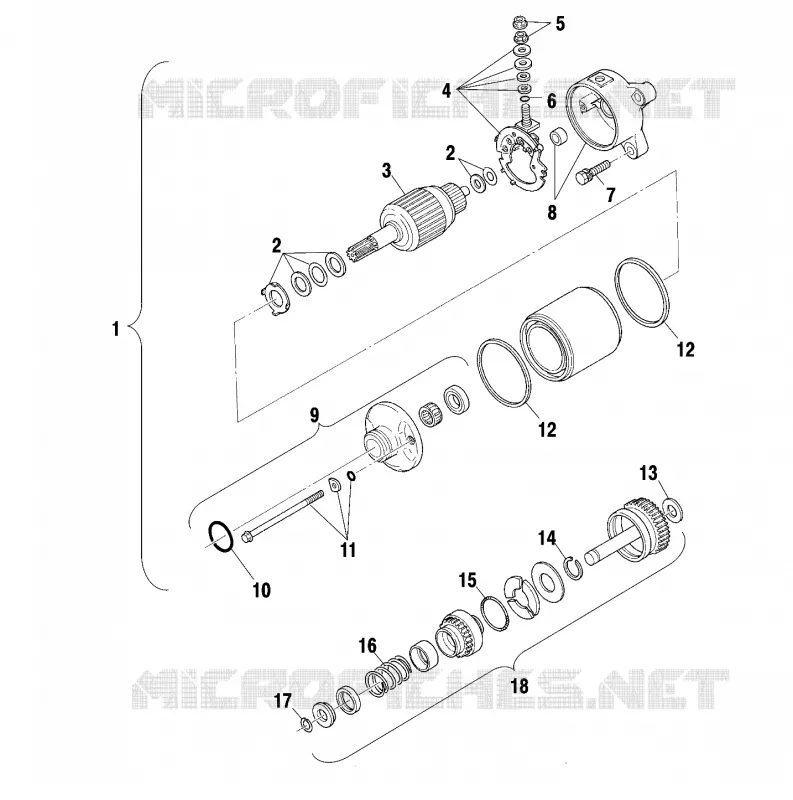

Parts Diagram
Parts Catalog
MAGNETO
by
FUEL PUMP
STARTING MOTOR
1
2
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
1
2
3
4
5
6
6
6
7
8
9
10
11
11
11
12
13
14
15
15
16
17
17
17
18
1
MOTOR STARTING * (Incl. 2-6 8-12)
3084981
$621,59 Unit Price incl. VAT
2
WASHER SET
3084982
Not Available
3
ARMATURE ASM.
3085353
Not Available
4
BRUSH COMPL.2-POLE *
3084406
$230,99 Unit Price incl. VAT
5
NUT FLANGE(10)
3083649
$7,34 Unit Price incl. VAT
6
O-RING
3084408
Not Available
7
ASM. BOLT AND WASHER
3082038
$7,34 Unit Price incl. VAT
8
COVER REAR STARTER(MAGNUM)
3085034
$173,24 Unit Price incl. VAT
9
COVER FRT STARTER(MAGNUM) * (Incl. 10)
3085033
$272,99 Unit Price incl. VAT
10
O-RING
3240114
$10,49 Unit Price incl. VAT
11
BOLT ASM SET (Incl. 6)
3084983
$41,99 Unit Price incl. VAT
12
RING RUBBER
3084405
Not Available
13
WASHER GEARSHAFT Substituted by 7555908
3083737
7556994
$6,29 Unit Price incl. VAT
14
CLIP
3084412
$17,84 Unit Price incl. VAT
15
SPRING WEIGHT
3084411
$25,08 Unit Price incl. VAT
16
SPRING RETURN
3084410
$3,98 Unit Price incl. VAT
17
CLIP
3084409
$13,64 Unit Price incl. VAT
18
Asm. Gear Shaft [Incl. 14-17]
3087030
$456,74 Unit Price incl. VAT
