1
Engine displacement
500
2
Year
2006
3
Trim
SPORTSMAN 500 EFI - A06MH50AQ
4
Parts Catalog

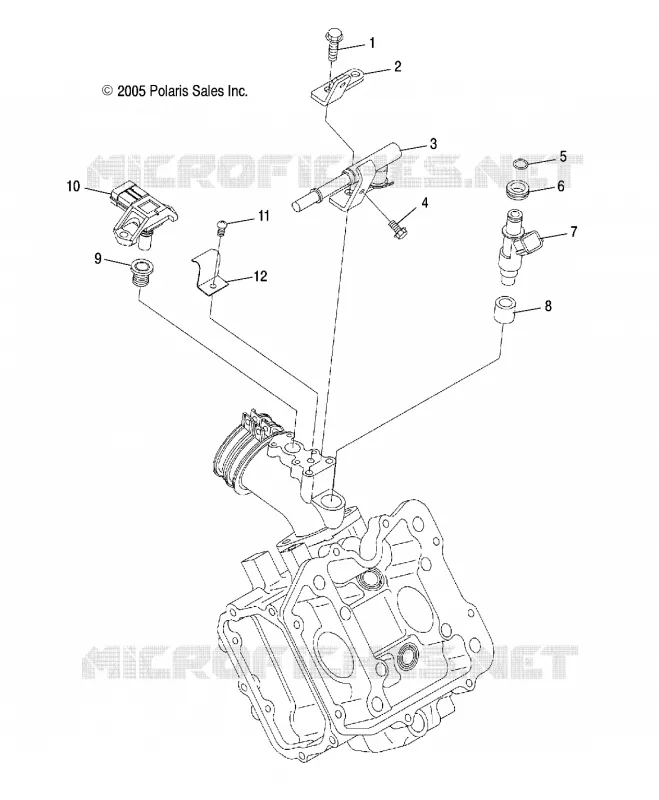

FUEL INJECTION
5
Parts Diagram
Parts Catalog
TRANSMISSION MOUNTING
by
STARTING MOTOR
FUEL INJECTION
1
2
3
4
5
6
7
8
9
10
11
12
1
1
1
1
1
2
2
3
3
4
4
4
4
4
4
4
5
5
5
5
6
6
6
6
7
7
8
9
10
10
11
11
12
12
1
BOLT FLANGE(10)
3084877
Not Available
2
Bracket
3089901
Not Available
3
Pipe Fuel Delivery Complete
3089900
$246,74 Unit Price incl. VAT
4
Bolt Flange
3088135
Not Available
5
O-Ring
3089899
$12,59 Unit Price incl. VAT
6
Grommet
3089896
$20,99 Unit Price incl. VAT
7
Asm. Injector
3089893
$435,74 Unit Price incl. VAT
8
Seal Fuel Injector
3089894
Not Available
9
Grommet
3089902
Not Available
10
Sensor Air Pressure
3089895
$314,99 Unit Price incl. VAT
11
Asm. Screw/Washer
3089904
$6,29 Unit Price incl. VAT
12
Clip
3089903
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
