1
Engine displacement
700
2
Year
1997
3
Trim
SL 700 DELUXE - B974072
4
Parts Catalog
WATER INLET SL 700 B974071, INTL. SL 700 I974071, SL 700 DELUXE B974072 AND (4940874087B012)
5
Parts Diagram
Parts Catalog
COOLING SYSTEM SL 700 B974071, INTL. SL 700 I974071, SL 700 DELUXE B974072 (4940874087B011)
by
CYLINDER MANIFOLD SL 700 B974071, INTL. SL 700 I974071, SL 700 DELUXE B97 (4940874087C005)

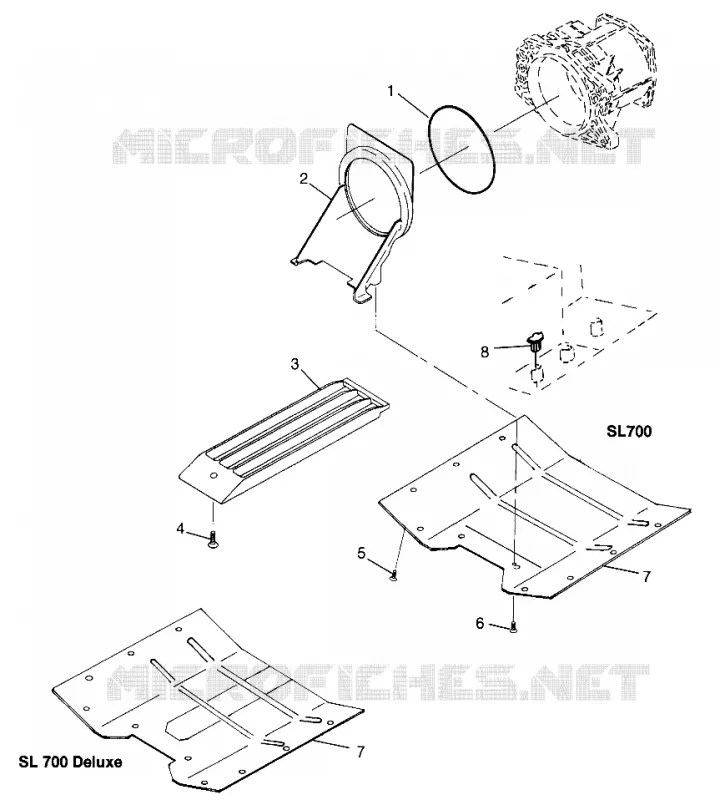

WATER INLET SL 700 B974071, INTL. SL 700 I974071, SL 700 DELUXE B974072 AND (4940874087B012)
1
O-RING PUMP HSG/HULL
5410652
Not Available
2
SCOOP INLET Substituted by 5630693
5130825
Not Available
3
GRATE INLET CAST BLK.
5630542067
$85,88 Unit Price incl. VAT
4
BOLT S.S.(10)
7515155
Not Available
5
SCREW (10)
7517267
Not Available
6
BOLT SS(10)
7515126
$1,56 Unit Price incl. VAT
7
PLATE RIDE (Flat) (700)
5630791
Not Available
7
PLATE RIDE FLAT W/SUPPORTS
5630776
Not Available
8
INSERT RIDEPLATE
7010083
$10,70 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
