1
Engine displacement
700
2
Year
1997
3
Trim
SL 700 DELUXE - B974072
4
Parts Catalog

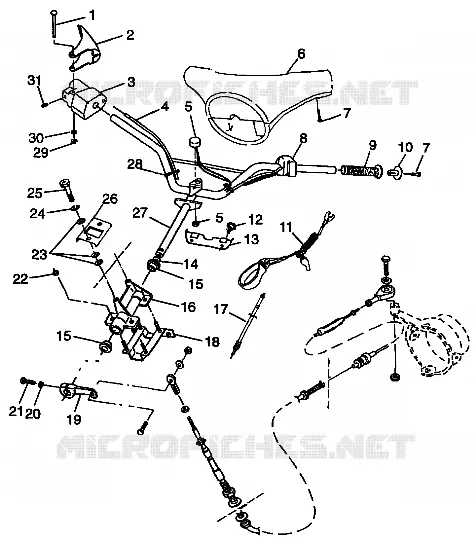

STEERING SL 700 B974071, INTL. SL 700 I974071, SL 700 DELUXE B974072 AND IN (4940874087B001)
5
Parts Diagram
Parts Catalog
OIL TANK SL 700 B974071, INTL. SL 700 I974071, SL 700 DELUXE B974072 AND IN (4940874087A014)
by
STEERING SL 700 B974071, INTL. SL 700 I974071, SL 700 DELUXE B974072 AND IN (4940874087B002)
STEERING SL 700 B974071, INTL. SL 700 I974071, SL 700 DELUXE B974072 AND IN (4940874087B001)
1
PIN RETAINING
7661628
Not Available
2
LEVER THROTTLE CONTROL
5431397
Not Available
3
BLOCK THROTTLE CONTROL
5431396
Not Available
4
CABLE THROTTLE
7080620
Not Available
4
CABLE THROTTLE (700)
7080690
Not Available
5
ALARM HI-TEMP/LOW OIL
4040048
$73,07 Unit Price incl. VAT
6
PAD H#BAR TRIM TEAL MT (Deluxe)
5432516168
Not Available
6
PAD H#BAR PUR.WAVE (700)
5432515214
Not Available
7
SCREW SS.(10)
7512047
$2,61 Unit Price incl. VAT
8
SWITCH ST./STOP/CHOKE (700)
4110232
Not Available
8
SWITCH ST/SP/TR/BG/CK
4110215
Not Available
9
DESC NOT_AVAILABLE (Deluxe)
5411221168
Not Available
9
GRIP H#BAR LBLUE Substituted by 5411221-070
5411221217
Not Available
10
PLUG HANDGRIP BLK.
7010082070
$4,82 Unit Price incl. VAT
11
LANYARD W/WHISTLE
7080675
Not Available
12
BOLT SHOULDER(10)
7515387
Not Available
13
STOP STEERING
5222677
Not Available
14
BUSH.(10)
7555875
$12,80 Unit Price incl. VAT
15
BUSHING STRG.SUPPORT
5431382
$41,04 Unit Price incl. VAT
16
HUB SPRT.STRG/ANODE.
5131509
Not Available
17
CABLE CHOKE SINGLE (700)
7080691
Not Available
17
CABLE CHOKE 67.53
7080670
Not Available
18
PLATE BOLT
1060101
Not Available
19
ARM STRNG. ANODIZED
5131441
$146,46 Unit Price incl. VAT
20
WASHER LOCK S.S.(10)
7552610
Not Available
21
BOLT S.S.(10)
7515375
$6,18 Unit Price incl. VAT
22
NUT HEX S.S.(10)
7542335
Not Available
23
WASHER FLAT S.S.(10)
7555837
$2,09 Unit Price incl. VAT
24
WASHER LOCK(10)
7552615
Not Available
25
SCREW S.S.(10)
7512051
Not Available
26
PLATE LATCH SLT Substituted by 5243533
5211860
Not Available
27
POST STEERING W/H#BAR
1823175
Not Available
27
POST STRG W/H#BAR TRIM
1860119
Not Available
28
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
$5,24 Unit Price incl. VAT
29
RING RETAIN.EXT. S.S.(10)
7710426
Not Available
30
WASHER FLAT S.S.(10)
7555840
$5,45 Unit Price incl. VAT
31
SCREW SET S.S.(10)
7515115
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
