Parts Catalog
SEAT SL 700 B974071, INTL. SL 700 I974071, SL 700 DELUXE B974072 AND INTL. (4940874087A013)
5
Parts Diagram
Parts Catalog
FUEL SYSTEM (DELUXE) SL 700 DELUXE B974072 AND INTL. SL 700 DELUXE I974072 (4940874087A012)
by
DRIVE SYSTEM SL 700 B974071, INTL. SL 700 I974071, SL 700 DELUXE B974072 AN (4940874087B004)

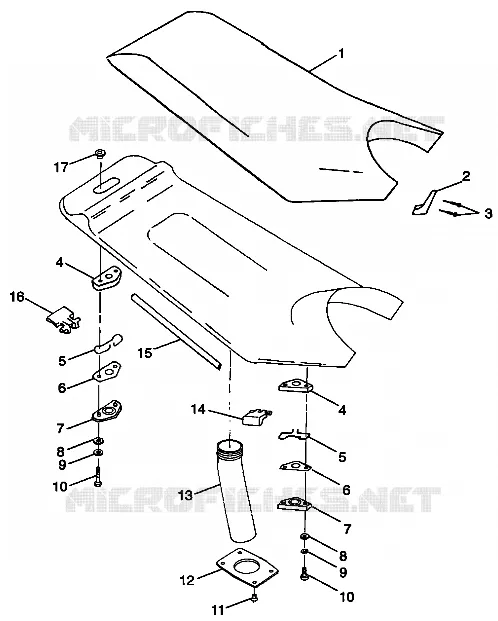

SEAT SL 700 B974071, INTL. SL 700 I974071, SL 700 DELUXE B974072 AND INTL. (4940874087A013)
1
SEAT ASM W/RIB TL.MET (Deluxe) (Incl. 1 10-16)
2682197168
Not Available
1
SEAT ASM W/RIB LSR.BLUE (700) (Incl. 1 10-16)
2682197217
Not Available
1
COVER SEAT TEAL MT. (Deluxe)
2681726168
Not Available
1
COVER SEAT LSR.BLUE (700)
2681726217
Not Available
2
SHIELD RH SEAT TEAL MT. (Deluxe)
5432125168
Not Available
2
SHIELD RH SEAT LSR.BLUE (700)
5432125217
Not Available
2
SHIELD LH SEAT TEAL MT. (Deluxe)
5432124168
Not Available
2
SHIELD LH SEAT LSR.BLUE (700)
5432124217
Not Available
3
SCREW(10)
7512089
$2,61 Unit Price incl. VAT
4
PLATE TOP SEATBASE LATCH
5431359
Not Available
5
SPRING SEATBASE LATCH
7042036
Not Available
6
PLATE SEATBASE LATCH
5211314
$7,97 Unit Price incl. VAT
7
PLATE LATCH BOT.SEAT BASE
5431357
$9,23 Unit Price incl. VAT
8
WASHER FLAT S.S.(10)
7555839
$0,93 Unit Price incl. VAT
9
WASHER LOCK S.S.(10)
7555838
Not Available
10
BOLT SS.(10)
7515123
$2,82 Unit Price incl. VAT
11
RVT-3/16(.187-.375)AL-AL/BULBX
7621479
$3,66 Unit Price incl. VAT
12
PLATE RETAINER
5211347
Not Available
13
DUCT AIR OUTLET
5431369
Not Available
14
HANDLE SEATBASE SIDE
5432622
Not Available
15
SEAL SEAT
5521371
Not Available
16
HANDLE SEAT
5431358
Not Available
17
NUT TEE(10)
7542137
$1,77 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
