1
Engine displacement
700
2
Year
1997
3
Trim
SL 700 DELUXE - B974072
4
Parts Catalog

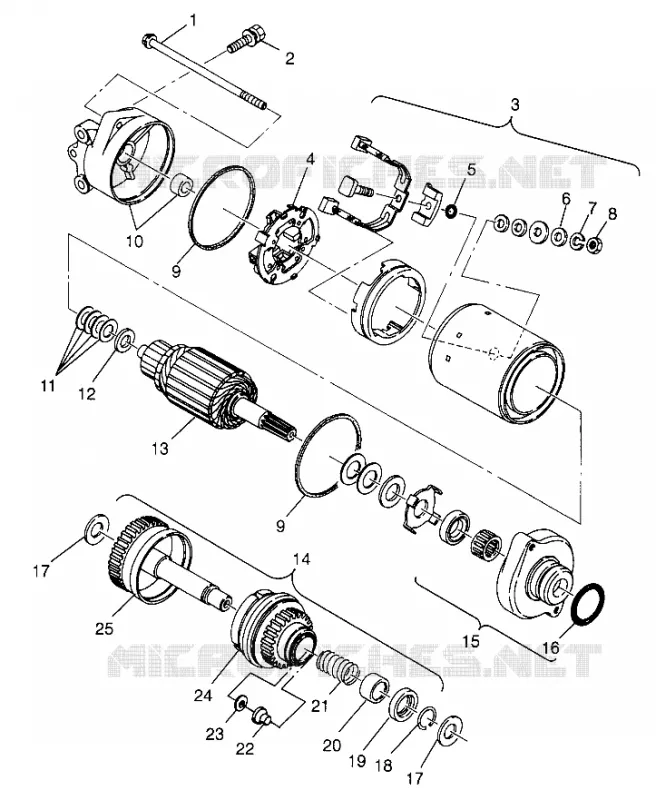

STARTING MOTOR SL 700 B974071, INTL. SL 700 I974071, SL 700 DELUXE B974072 (4940874087C013)
5
Parts Diagram
Parts Catalog
MAGNETO SL 700 B974071, INTL. SL 700 I974071, SL 700 DELUXE B974072 AND INT (4940874087C012)
by
FUEL / WATER SEPARATOR SL 700 B974071, INTL. SL 700 I974071, SL 700 DELUXE B9 (4940874087C014)
STARTING MOTOR SL 700 B974071, INTL. SL 700 I974071, SL 700 DELUXE B974072 (4940874087C013)
-
STARTER
4060118
Not Available
1
BOLT THROUGH
3240113
$14,16 Unit Price incl. VAT
2
BOLT FLANGE
3240062
Not Available
3
BRUSH COMPL.
3240115
Not Available
4
SPRING BRUSH
3240111
Not Available
5
O-RING
3084408
Not Available
6
WASHER(10)
3240119
Not Available
7
WASHER SPRING(10)
3240117
Not Available
8
NUT(10)
3240116
Not Available
9
RING RUBBER
3084405
Not Available
10
BRACKET ASM REAR
3240207
$85,88 Unit Price incl. VAT
11
WASHER THRUST(10)
3240118
Not Available
12
WASHER THRUST
3240112
$0,51 Unit Price incl. VAT
13
ARMATURE ASM.
3240205
$179,54 Unit Price incl. VAT
14
BENDIX (Incl. 17-22)
4060119
4012614
$394,79 Unit Price incl. VAT
15
BRACKET ASM FRONT (Incl. 15)
3240206
Not Available
16
O-RING
3240114
$10,49 Unit Price incl. VAT
17
WASHER GEARSHAFT Substituted by 7555908
3083737
7556994
$6,29 Unit Price incl. VAT
18
SNAP RING
3240126
Not Available
19
STOPPER
3240125
Not Available
20
COVER
3240123
Not Available
21
SPRING
7041457
Not Available
22
BUSHING PLASTIC
3574214
$8,07 Unit Price incl. VAT
23
WASHER-THRUST 12.10X24X1.07
7555908
7556994
$6,29 Unit Price incl. VAT
24
GEAR ASM. Substituted by 3240120
3240122
4012614
$394,79 Unit Price incl. VAT
25
GEAR ASM. Substituted by 4060119
3240120
4012614
$394,79 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
