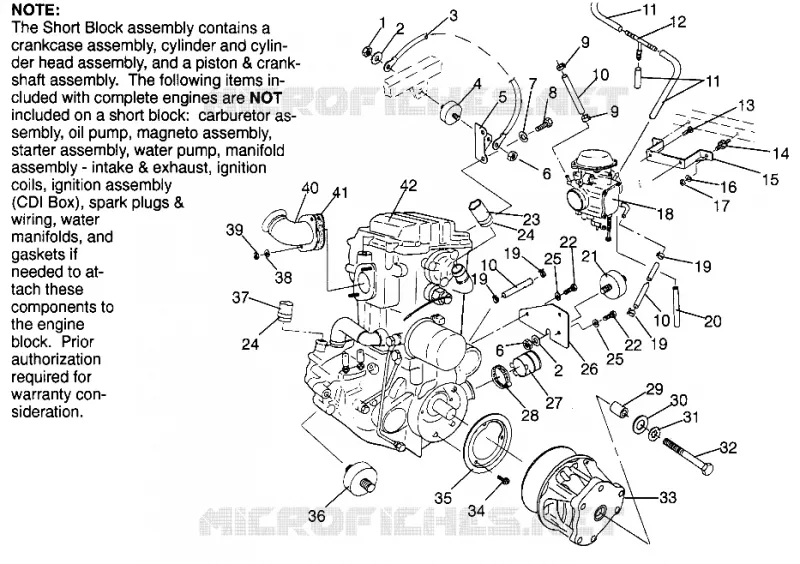

ENGINE MOUNTING MAGNUM 2X4 W967544 (4936033603A008)
5
Parts Diagram
Parts Catalog
BUMPER / RACKS MOUNTING MAGNUM 2X4 W967544 (4936033603A007)
by
COOLING SYSTEM MAGNUM 2X4 W967544 (4936033603A009)
ENGINE MOUNTING MAGNUM 2X4 W967544 (4936033603A008)
1
2
2
3
4
5
6
6
7
8
9
9
10
10
10
11
11
12
13
14
15
16
17
18
19
19
19
19
20
21
22
22
18
24
24
25
25
26
27
28
29
30
31
32
18
18
35
36
18
18
18
40
18
42
1
NUT FLEXLOC
7542411
$6,29 Unit Price incl. VAT
2
WASHER(10)
7555801
$7,34 Unit Price incl. VAT
3
CABLE GROUND/ENG.
4010067
Not Available
4
Mount Rubber
3110044
3024012
$83,99 Unit Price incl. VAT
5
MOUNT ENG.TOP BLK.
5240328067
Not Available
6
Nut
7542403
Not Available
7
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
8
Bolt
7512315
$9,44 Unit Price incl. VAT
9
CLAMP-HOSE (LARGE GREEN)
7080307
$1,56 Unit Price incl. VAT
10
FUEL LINE-1/4 ID (SVC) 600 CM [BULK]
8450040600
$136,49 Unit Price incl. VAT
11
HOSE [BULK SVC]
84500031525
$136,49 Unit Price incl. VAT
12
FITTING-TEE 1/4-1/4-BRB-NY
7052075
$17,84 Unit Price incl. VAT
13
SCREW & WASHER(10)
3084205
$7,34 Unit Price incl. VAT
14
MOUNT CARBURETOR
3110050
$19,94 Unit Price incl. VAT
15
BRKT CARB.MT.
5240609067
Not Available
16
WASHER(10)
7552605
$9,44 Unit Price incl. VAT
17
NUT-1/4-20 HEX-Y
7542105
$7,34 Unit Price incl. VAT
18
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
19
HOSE CLAMP RED
7080003
$2,09 Unit Price incl. VAT
20
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
$83,99 Unit Price incl. VAT
21
MOUNT RUBBER REAR Substituted by 3110068
3110045
Not Available
22
SCREW
7512490
$7,34 Unit Price incl. VAT
23
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
24
CLAMP HOSE WORM GEAR 1.25
7080614
$13,64 Unit Price incl. VAT
25
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
7552603
$1,56 Unit Price incl. VAT
26
MT. SEAL RETAINER BLK.
5211431067
Not Available
27
BOOT CLUTCH INTAKE
5410421
$20,99 Unit Price incl. VAT
28
CLAMP-NARROW BAND 1.38/2.38
7080511
$9,44 Unit Price incl. VAT
29
BUSHING-.437 X.770 X.50
5430261
$13,64 Unit Price incl. VAT
30
WASHER-.440X1.25X.190 FL-Y
5210748
$7,34 Unit Price incl. VAT
31
WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]
7575202
$9,44 Unit Price incl. VAT
32
BOLT(10) *
7512566
$52,49 Unit Price incl. VAT
33
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
34
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
35
BRKT RETAINER SEAL BLK. Substituted by 5242046-067
5240409067
$68,24 Unit Price incl. VAT
36
Mount Rubber
3110046
Not Available
37
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
38
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
39
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
40
MANIFOLD Substituted by 1260832-029
1260720029
Not Available
41
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
42
ENG.(S.B.)EH42PL-01 [No Longer Available]
3085023
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
