1
Engine displacement
0
2
Year
1996
3
Trim
MAGNUM 2X4 - W967544
4
Parts Catalog

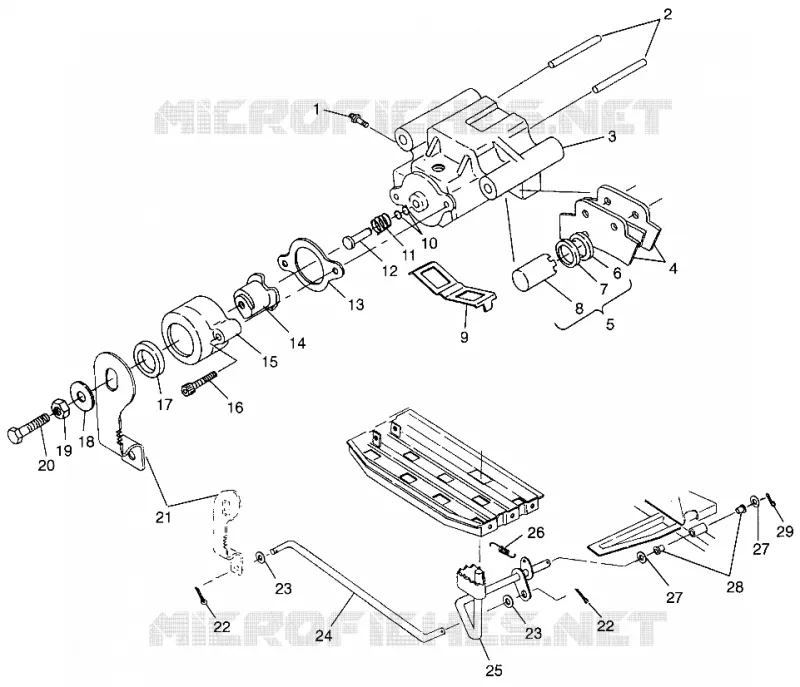

REAR BRAKE MAGNUM 2X4 W967544 (4936033603C001)
5
Parts Diagram
Parts Catalog
GEARCASE BRAKE MOUNTING MAGNUM 2X4 W967544 (4936033603B014)
by
REAR WHEEL DRIVE MAGNUM 2X4 W967544 (4936033603C002)
REAR BRAKE MAGNUM 2X4 W967544 (4936033603C001)
1
2
3
4
5
6
6
6
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
23
24
25
26
27
27
28
29
1
2
3
4
5
6
6
6
9
10
11
12
13
14
15
16
17
18
1
BLEEDER SCREW 4WD
7080352
$5,76 Unit Price incl. VAT
2
PIN DOWEL(10)
7661820
$20,99 Unit Price incl. VAT
3
CALIPER R.BRAKE MACH
5131272
Not Available
4
KIT R.BRAKEPAD HVY.DUTY
2200899
Not Available
5
KIT PISTON&SEAL (Incl. 6 - 8)
2200463
$167,99 Unit Price incl. VAT
6
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
9
SPRING ANTI-RATTLE
5240993
Not Available
10
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
11
SPRING BRAKE COMP.
7041219
Not Available
12
PIN BRAKE CALIPER
5020666
Not Available
13
GASKET BRAKE
5830009
Not Available
14
RAMP MOVEABLE BRAKE Substituted by 2200905
5630458
Not Available
15
RAMP STAT.BRAKE Substituted by 2200905
5630457
Not Available
16
SCREW(10)
7512173
Not Available
17
SEAL BRAKE
3610026
Not Available
18
Washer Belleville
7555828
Not Available
19
NUT(10)
7542129
$9,44 Unit Price incl. VAT
20
BOLT
7515145
Not Available
21
ARM BRAKE CALIPER
5240624
Not Available
22
PIN COTTER
7661203
$2,09 Unit Price incl. VAT
23
WASHER
7555806
$1,56 Unit Price incl. VAT
24
ROD BRAKE
5224531
$83,25 Unit Price incl. VAT
25
FOOTBRAKE BLK.
1910144067
Not Available
26
SPRING-EXHAUST
7042029
$10,49 Unit Price incl. VAT
27
WASHER-.510X.840X.031 Y
7555919
$7,34 Unit Price incl. VAT
28
BUSHING-PEDAL PIVOT
5431107
$16,79 Unit Price incl. VAT
29
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
