1
Engine displacement
0
2
Year
1996
3
Trim
MAGNUM 2X4 - W967544
4
Parts Catalog

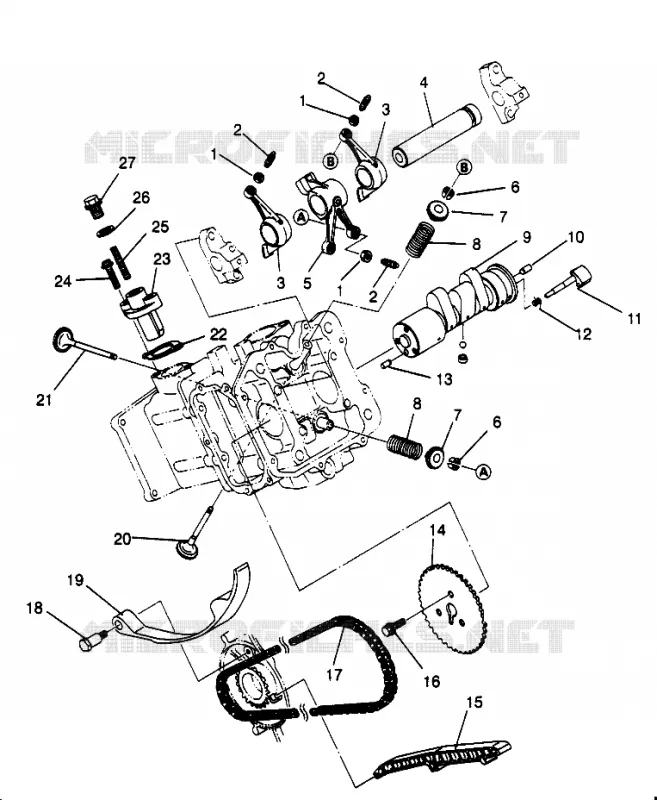

INLET EXHAUST MAGNUM 2X4 W967544 (4936033603C011)
5
Parts Diagram
Parts Catalog
CRANKSHAFT AND PISTON MAGNUM 2X4 W967544 (4936033603C010)
by
CARBURETOR MAGNUM 2X4 W967544 (4936033603D002)
INLET EXHAUST MAGNUM 2X4 W967544 (4936033603C011)
1
1
1
2
2
2
3
3
4
5
6
6
7
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
2
3
4
5
5
6
7
7
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
25
26
27
1
NUT
3084912
$7,34 Unit Price incl. VAT
2
Screw Adjusting
3084911
$17,84 Unit Price incl. VAT
3
Asm. Rocker Arm Intake [Incl. 8 9]
3084910
$230,99 Unit Price incl. VAT
4
Shaft Rocker
3084909
$99,74 Unit Price incl. VAT
5
Asm. Rocker Arm Exhaust [Incl. 8 9]
3084913
$262,49 Unit Price incl. VAT
6
Collet Valve
3084908
$9,44 Unit Price incl. VAT
7
RETAINER SPRING Substituted by 3086893
3084907
Not Available
8
Spring Valve
3084906
$52,49 Unit Price incl. VAT
9
CAMSHAFT Substituted by 3086212 (Incl. 17-20)
3084898
$598,49 Unit Price incl. VAT
10
PIN DOWEL Substituted by 3086838
3080103
$13,64 Unit Price incl. VAT
11
Lever Release
3085348
Not Available
12
Spring Return
3085076
Not Available
13
Pin Dowel
3084899
$13,64 Unit Price incl. VAT
14
Sprocket 2
3084914
$141,74 Unit Price incl. VAT
15
Guide Chain
3084916
Not Available
16
BOLT&WASHER ASM.
3081657
$9,44 Unit Price incl. VAT
17
Chain Timing
3084915
$188,99 Unit Price incl. VAT
18
Bolt Pivot
3084924
Not Available
19
Lever
3084917
$173,24 Unit Price incl. VAT
20
Valve Intake
3085349
$125,99 Unit Price incl. VAT
21
Valve Exhaust
3085412
$173,24 Unit Price incl. VAT
22
Gasket Tensioner
3084922
Not Available
23
TENSIONER ASM. (Incl. 5-7)
3084918
Not Available
24
Bolt Flange
3084874
Not Available
25
SPRING TENSIONER
3084919
Not Available
26
Gasket Plug
3084920
Not Available
27
Plug
3084845
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
