1
Engine displacement
0
2
Year
1996
3
Trim
MAGNUM 2X4 - W967544
4
Parts Catalog

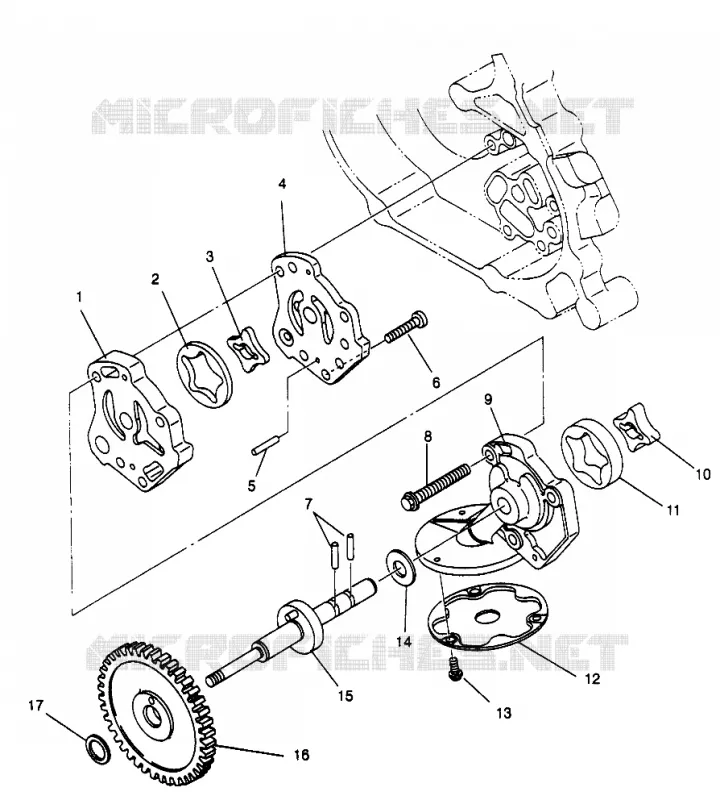

OIL PUMP MAGNUM 2X4 W967544 (4936033603C014)
5
Parts Diagram
Parts Catalog
FUEL PUMP MAGNUM 2X4 W967544 (4936033603C013)
by
OIL FILTER MAGNUM 2X4 W967544 (4936033603D001)
OIL PUMP MAGNUM 2X4 W967544 (4936033603C014)
1
2
3
4
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
17
17
17
17
17
17
17
1
CASE #2 OILPUMP
3084946
$136,49 Unit Price incl. VAT
2
ROTOR OUTER FEED (Feed)
3084949
$83,99 Unit Price incl. VAT
3
ROTOR INNER FEED (Feed)
3084948
Not Available
4
PUMP OIL * (Incl. 1-8 10-15)
3084944
Not Available
4
CASE #1 OILPUMP
3084945
Not Available
5
PIN DOWEL
3084955
Not Available
6
SCREW
3083407
Not Available
7
PIN DOWEL
3084954
$13,64 Unit Price incl. VAT
8
BOLT&WASHER ASM.
3084962
Not Available
9
CASE #3 OILPUMP
3084947
$152,24 Unit Price incl. VAT
10
ROTOR INNER SCAV. (Scav)
3084950
$62,99 Unit Price incl. VAT
11
ROTOR OUTER
3090307
$89,24 Unit Price incl. VAT
12
STRAINER UNIT OIL
3084956
Not Available
13
SCREW & WASHER(10)
3084205
$7,34 Unit Price incl. VAT
14
WASHER(10)
3084953
$6,29 Unit Price incl. VAT
15
SHAFT PUMP *
3084952
$173,24 Unit Price incl. VAT
16
GEAR 2 PUMP *
3084958
$152,24 Unit Price incl. VAT
17
SPACER (0.8)
3084959
$16,79 Unit Price incl. VAT
17
SPACER (1.0)
3084960
Not Available
17
SPACER (1.2)
3084961
$16,79 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
