1
Engine displacement
500
2
Year
1994
3
Trim
EURO 500 EFI SKS - E942574
4
Parts Catalog

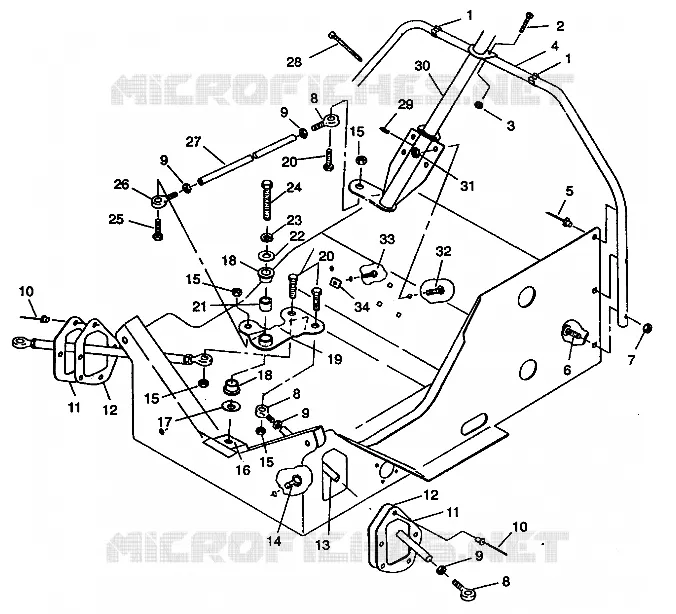

STEERING ASSEMBLY 500 EFI E942774 AND EFI SKS E942574 (49274127410014)
5
Parts Diagram
Parts Catalog
STEERING
by
CONTROLS 500 EFI E942774 AND EFI SKS E942574 (49274127410015)
STEERING ASSEMBLY 500 EFI E942774 AND EFI SKS E942574 (49274127410014)
1
CLIP(10)
7080278
$4,71 Unit Price incl. VAT
2
BOLT (10) Substituted by 7517377
7512239
7517377
$9,44 Unit Price incl. VAT
3
NUT(10)
7542124
7542122
$2,09 Unit Price incl. VAT
4
HOOP STRG BLK.
1011929067
Not Available
5
RIVET (MONOBOLT) Substituted by 7661637
7661620
7661637
$2,09 Unit Price incl. VAT
6
BOLT-CARRIAGE(10)
7512275
$7,34 Unit Price incl. VAT
7
NUT FLEXLOC
7542103
$10,49 Unit Price incl. VAT
8
ROD END RH Substituted by 7060167
7060152
7060167
$99,74 Unit Price incl. VAT
8
ROD END LH Substituted by 7060166
7060151
7060166
$99,74 Unit Price incl. VAT
9
NUT-3/8-24-(L.H.)-Y
7542424
$1,56 Unit Price incl. VAT
9
NUT-3/8-24-2B-Z
7542401
$4,19 Unit Price incl. VAT
10
RIVET(50)
7621301
Not Available
11
PLATE BOOT SEAL
5222942
$19,94 Unit Price incl. VAT
12
BOOT TIE ROD
5410761
$26,24 Unit Price incl. VAT
13
ROD TIE BLACK
5332713067
Not Available
13
TIEROD
5020636067
Not Available
14
CLIP ROSEBUD
4020139
$9,44 Unit Price incl. VAT
15
Nut
7542403
Not Available
16
BLOCK CTR.STRG.
5130889
Not Available
17
WASHER-WAVE 7/8X1X.010
7555735
$7,34 Unit Price incl. VAT
18
BUSHING
3563907
$7,34 Unit Price incl. VAT
19
ARM STRG CTR.
1822124067
$22,46 Unit Price incl. VAT
20
BOLT(10) Substituted by 7515492
7512410
7515540
$9,44 Unit Price incl. VAT
21
BUSHING-SPACER
5010161
Not Available
22
WASHER
7555721
$2,09 Unit Price incl. VAT
23
WASHER SPLIT LOCK
7553201
$7,34 Unit Price incl. VAT
24
BOLT(10)
7512680
Not Available
25
SCR-HH-3/8-24X5.5 GR5 ZY3
7512404
$7,34 Unit Price incl. VAT
26
ROD END LH Substituted by 7060164
7060124
7060164
$99,74 Unit Price incl. VAT
27
ROD DRAG LINK
5333144
Not Available
28
STRAP BLK
7080272
Not Available
29
FITTING-LUBE.(10) Substituted by 7080561
7080220
$9,44 Unit Price incl. VAT
30
POST STRG BLK.
1823157067
Not Available
31
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
32
BOLT(10) Substituted by 7512377
7512394
7512377
$9,44 Unit Price incl. VAT
33
SCR-RHCAR-1/4-20X0.75 GR5 ZY3
7512193
$4,19 Unit Price incl. VAT
34
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
