1
Engine displacement
500
2
Year
1994
3
Trim
EURO 500 EFI SKS - E942574
4
Parts Catalog

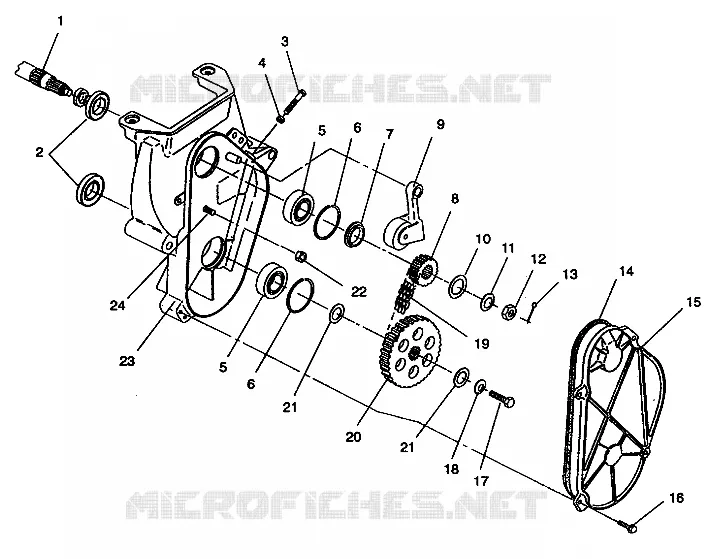

CHAINCASE ASSEMBLY 500 EFI E942774 AND EFI SKS E942574 (49274127410018)
5
Parts Diagram
Parts Catalog
COOLING SYSTEM 500 EFI E942774 AND EFI SKS E942574 (49274127410017)
by
DRIVE TRAIN ASSEMBLY 500 EFI E942774 AND EFI SKS E942574 (49274127410019)
CHAINCASE ASSEMBLY 500 EFI E942774 AND EFI SKS E942574 (49274127410018)
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
SEAL OIL
3610030
$36,74 Unit Price incl. VAT
3
SCR-HH-3/8-16X2.75GR5 ZY3
7515511
$7,34 Unit Price incl. VAT
4
NUT-3/8-16-Y
7542404
$3,14 Unit Price incl. VAT
5
BEARING W/O SEAL
3514304
$27,29 Unit Price incl. VAT
6
RING RETAINING
7718406
$11,54 Unit Price incl. VAT
7
SPACER SPROCKET
5010270
Not Available
8
SPKT 20T (500 SKS)
3221053
Not Available
8
SPROCKET 21 T
3221035
Not Available
9
TIGHTENER ASM GEARCASE Substituted by 1332213
1332096
Not Available
10
WASHER
7555863
$4,19 Unit Price incl. VAT
11
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
12
NUT SLOTTED
7542810
$5,76 Unit Price incl. VAT
13
PIN COTTER
7661401
$1,56 Unit Price incl. VAT
14
GASKET-CHAINCASE
5410277
Not Available
15
COVER CHAINCASE Substituted by 5630968
5630413
Not Available
16
SCR-1/4-20X1 1/4-TRIRD HX WH-Y
7512242
$4,19 Unit Price incl. VAT
17
SCREW(10)
7515350
7517979
$7,34 Unit Price incl. VAT
18
WASHER-SPRING CON 5/16X.090 Z
7571618
$11,54 Unit Price incl. VAT
19
CHAIN 66 PITCH
3224024
Not Available
20
SPROCKET 39 T
3222034
Not Available
21
WSHR-1.00X1.250X.120-Y
7555864
$4,19 Unit Price incl. VAT
22
NUT-HEX-3/8-16 A ZTB NYL
7542451
$2,09 Unit Price incl. VAT
23
CHAINCASE TOP MNT.BRAKE
5130849
Not Available
24
BOLT(10)
7515477
$52,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
