1
Engine displacement
500
2
Year
1994
3
Trim
EURO 500 EFI SKS - E942574
4
Parts Catalog

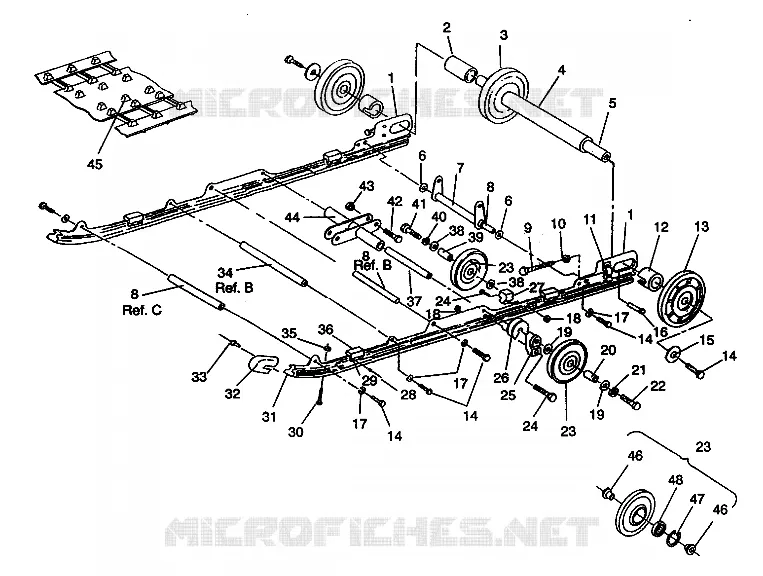

SUSPENSION ASSEMBLY 500 EFI SKS E942574 (49274127410023)
5
Parts Diagram
Parts Catalog
SUSPENSION ASSEMBLY 500 EFI E942774 (49274127410021)
by
FRONT TORQUE ARM 500 EFI 0942774 AND EFI SKS 0942574 (49274127410025)
SUSPENSION ASSEMBLY 500 EFI SKS E942574 (49274127410023)
1
RAIL ASM LH. (Incl. 11 31 34 38)
1540741
Not Available
1
RAIL ASM RH. (Incl. 11 31 34 38)
1540742
Not Available
2
SPACER INNER IDLER
5010169
Not Available
3
WHEEL IDLER Substituted by 1594079-070
1594021
Not Available
4
SPACER IDLER R.INNER
5333086
Not Available
5
SHAFT IDLER
5020722
Not Available
6
BUSHING-.781 X1.250X.060-Y
7556301
$6,29 Unit Price incl. VAT
7
ARM R.PIVOT BLK.
1540721067
Not Available
8
SHAFT PIVOT ARM
5020723
$47,24 Unit Price incl. VAT
9
BOLT ADJUSTER(10)
7515455
$41,99 Unit Price incl. VAT
10
NUT
7542440
7542404
$3,14 Unit Price incl. VAT
11
BLOCK IDLER BOLT ADJUSTING
5130530
$62,99 Unit Price incl. VAT
12
SPACER-IDLER-OUTER
5332641
Not Available
13
WHEEL IDLER PLUM
1594053
Not Available
14
BOLT(10)
7515526
7517731
$2,09 Unit Price incl. VAT
15
WASHER(10) Substituted by 7556130
7571629
7556130
$11,54 Unit Price incl. VAT
16
RIVET
7621501
$4,19 Unit Price incl. VAT
17
WASHER-SPRING-LOCK
7552603
$1,56 Unit Price incl. VAT
18
Nut
7542403
Not Available
19
WASHER-.438X1.375X.083 FL-B
7555852
$4,19 Unit Price incl. VAT
20
SPACER WHEEL
5333116
$13,64 Unit Price incl. VAT
21
WASHER LOCK(10)
7553101
$7,34 Unit Price incl. VAT
22
BOLT(10)
7512538
$11,54 Unit Price incl. VAT
23
WHEEL IDLER
1543018
$115,49 Unit Price incl. VAT
24
SCR-HH-3/8-24X5.5 GR5 ZY3
7512404
$7,34 Unit Price incl. VAT
25
SPACER BOGIE WHEEL
5630399
$20,99 Unit Price incl. VAT
26
ROLLER SPRING
5431366
$19,94 Unit Price incl. VAT
27
BRACKET BOGIE WHEEL
5130570
$89,24 Unit Price incl. VAT
28
RIVET
7621476
$2,09 Unit Price incl. VAT
29
ANGLE REINFORCEMENT BUMPER
5222629
$26,24 Unit Price incl. VAT
30
SCREW
7512227
$6,29 Unit Price incl. VAT
31
SLIDER BLK. Substituted by 5521320
5521296
Not Available
32
COVER RAIL TIP Substituted by 5433005
5431421
Not Available
33
RIVET
7621435
$2,09 Unit Price incl. VAT
34
SHAFT PIVOT ARM
5020724
$47,24 Unit Price incl. VAT
35
NUT NYLOK
7542122
$2,09 Unit Price incl. VAT
36
BUMPER SUSPENSION
5810554
$15,74 Unit Price incl. VAT
37
SHAFT R.SHOCK BRKT.
5020649
Not Available
38
WASHER
7555804
$7,34 Unit Price incl. VAT
39
SPACER
5332786
$13,64 Unit Price incl. VAT
40
WASHER SPLIT LOCK
7553201
$7,34 Unit Price incl. VAT
41
SCREW
7512659
$13,64 Unit Price incl. VAT
42
SCREW
7515415
$2,09 Unit Price incl. VAT
43
NUT-3/8-24(NYLOK)-Y
7542439
$2,09 Unit Price incl. VAT
44
MT. R.SHOCK BLK.
1011904067
$25,08 Unit Price incl. VAT
45
TRACK DEEP PROF.SKS Substituted by 5410744 (XLT SKS)
5410813
Not Available
46
INSERT WHEEL
5431531
$19,94 Unit Price incl. VAT
47
RING RETAINING
7718407
$9,44 Unit Price incl. VAT
48
BEARING CHAINCASE
3514305
$34,64 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
