1
Engine displacement
500
2
Year
1994
3
Trim
EURO 500 EFI SKS - E942574
4
Parts Catalog

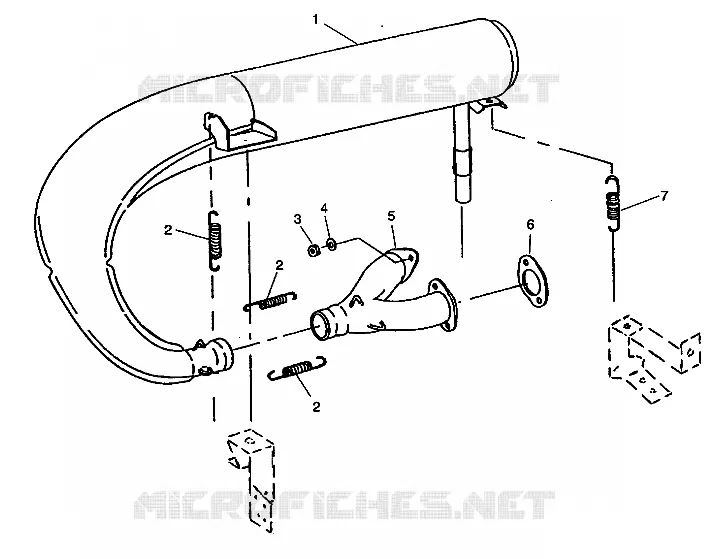

EXHAUST SYSTEM 500 EFI 0942774 AND EFL SKS 0942574 (49274127410030)
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING 500 EFI 0942774 AND EFI SKS 0942574 (49274127410029)
by
WATER PUMP 500 EFI 0942774 AND EFI SKS 0942574 (49274127410035)
EXHAUST SYSTEM 500 EFI 0942774 AND EFL SKS 0942574 (49274127410030)
1
MUFFLER (94#500 EFI) (Touring)
1260618029
Not Available
2
SPRING EXHAUST(10)
7042031
7041687
$12,59 Unit Price incl. VAT
3
NUT(10)
3080285
Not Available
4
WASHER LOCK (10)
3080530
$6,29 Unit Price incl. VAT
5
MANIFOLD BLK.
1260608029
Not Available
6
GASKET EXHAUST NA(10) Substituted by 3086757 (Exhaust) NA
3084439
Not Available
7
SPRING-EXHAUST
7042029
$10,49 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
