Parts Catalog
FRONT STRUT ASSEMBLY 6X6 250 W938727 (4924092409015A)
5
Parts Diagram
Parts Catalog
CV JOINT 6X6 250 W938727 (4924092409014A)
by
CONTROLS

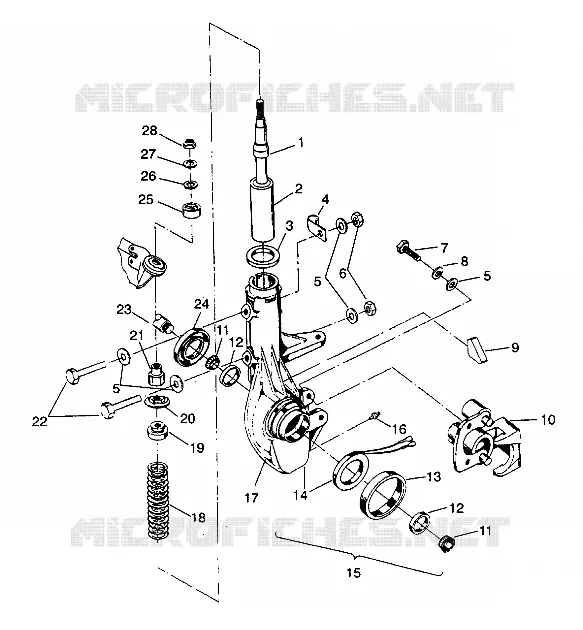

FRONT STRUT ASSEMBLY 6X6 250 W938727 (4924092409015A)
12
12
13
14
15
15
15
15
16
17
17
17
17
18
19
20
21
22
23
24
25
26
27
28
1
BUMPER RUBBER
5410429
Not Available
2
SHOCK FR.STRUT Substituted by 7041451
7041211
Not Available
3
WASHER-2.06X2.62X.105-Y [BJ/BK/BX/B9]
5211115
$7,34 Unit Price incl. VAT
4
CLAMP(10) Substituted by 7080573
7080347
7080573
$13,64 Unit Price incl. VAT
5
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
6
NUT FLEX-LOC(10)
7542303
$11,54 Unit Price incl. VAT
7
SCREW CAP(10) [CALIPER MOUNTING]
7512365
$2,09 Unit Price incl. VAT
8
WASHER-5/16 SPRING LK-MED-Y
7552901
$2,09 Unit Price incl. VAT
9
RETAINER WIRE STRUT CAST
5810439
Not Available
10
CALIPER ASM RH BRAKE Substituted by 1910174 (Complete) (#J# Model Only)
1910075
Not Available
11
BRG TAPER.ROLL.CONE
3554506
$54,59 Unit Price incl. VAT
12
BRG TAPER ROLL CUP
3554507
$54,59 Unit Price incl. VAT
13
SLEEVE STRUT HUB SEAL
5222193
$120,74 Unit Price incl. VAT
14
COIL MAGNETIC
4170003
$120,74 Unit Price incl. VAT
15
HUB STRUT ASM LH (Incl. 6 18 20 23 24)
1843033
Not Available
15
HUB STRUT ASM RH (Incl. 6 18 20 23 24)
1843034
Not Available
16
FITTING LUB W/BALL
7080306
$5,76 Unit Price incl. VAT
17
SUPPORT RH HUB STRUT [No Longer Available]
5130703
Not Available
17
SUPPORT LH HUB STRUT [No Longer Available]
5130702
Not Available
18
SPRING COIL FR.SHOCK
7041238067
Not Available
19
RETAINER SPRING TOP (Before 11/2/98)
5220602
Not Available
20
PIVOT BALL BOTTOM Substituted by 5432871
5430807
5432871
$19,94 Unit Price incl. VAT
21
SPACER THREADED (Before 11/2/98)
5130668
$52,49 Unit Price incl. VAT
22
SCR-HH-5/16-18X2.25 GR5 ZY3
7515339
$9,44 Unit Price incl. VAT
23
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
24
SEAL HUB STRUT
3610028
$57,74 Unit Price incl. VAT
25
PIVOT BALL TOP Substituted by 5432872
5430806
5432872
$19,94 Unit Price incl. VAT
26
SPACER-RUBBER
5810291
$7,34 Unit Price incl. VAT
27
WSHR-.500X1.50-12GA-Y
7555749
$2,09 Unit Price incl. VAT
28
NUT FLEX LOC(10)
7542507
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
