1
Engine displacement
250
2
Year
1993
3
Trim
250 6X6 - W938727
4
Parts Catalog
STEERING POST ASSEMBLY 6X6 250 W938727 (4924092409019A)
5

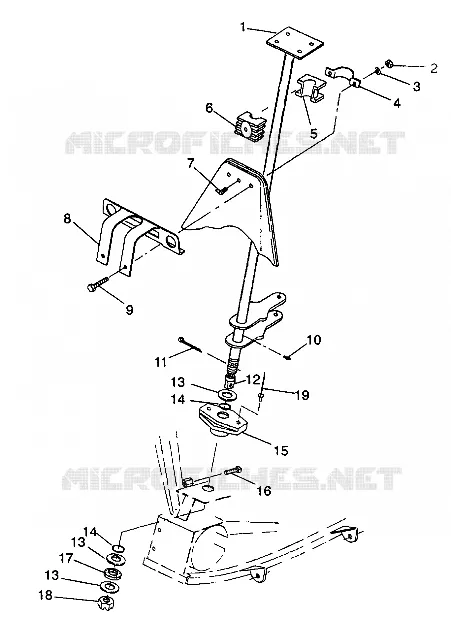

Parts Diagram
Parts Catalog
STEERING
by
WISHBONES 6X6 250 W938727 (4924092409020A)
STEERING POST ASSEMBLY 6X6 250 W938727 (4924092409019A)
15
16
17
18
19
1
POST STEERING (Incl.10 12)
1843041
Not Available
2
NUT-5/16-18 NYLOK-Y [INTL]
7542324
$1,56 Unit Price incl. VAT
3
WASHER-.344X.688X.063 FL-Y
7558402
$1,56 Unit Price incl. VAT
4
Bracket Steering Post
5222999067
5257028
$62,99 Unit Price incl. VAT
5
BUSHING STRG.CONSOLE Substituted by 5433416
5431572
5433416
$16,79 Unit Price incl. VAT
6
BUSHING STRG.CONSOLE Substituted by 5433415
5431573
5433415
$16,79 Unit Price incl. VAT
7
FITTING ZERK 90 DEGREE
7080510
$10,49 Unit Price incl. VAT
8
BRKT IGN. PANEL
5220965067
Not Available
9
BOLT
7512310
$4,19 Unit Price incl. VAT
10
FITTING LUBRICATION
7080433
$2,09 Unit Price incl. VAT
11
Pin Cotter
7661633
Not Available
12
PLUG GREASE STRG.
5431574
Not Available
13
BUSHING(10)
7555781
Not Available
14
O-Ring
5410772
Not Available
15
BUSHING LOWER STRG.
5431570
Not Available
16
SCREW SET(10)
7515508
Not Available
17
SPACER STRG.POST
5431571
Not Available
18
NUT HEX SLOTTED(10)
7543203
$17,84 Unit Price incl. VAT
19
RIVET MONOBOLT (50)
7661632
$9,44 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
