1
Engine displacement
250
2
Year
1993
3
Trim
250 6X6 - W938727
4
Parts Catalog
AIR BOX 6X6 250 W938727 (4924092409011A)
5
Parts Diagram
Parts Catalog
HEADLIGHT ASSEMBLY 6X6 250 W938727 (4924092409010A)
by
FRONT WHEEL ASSEMBLY 6X6 250 W938727 (4924092409016A)

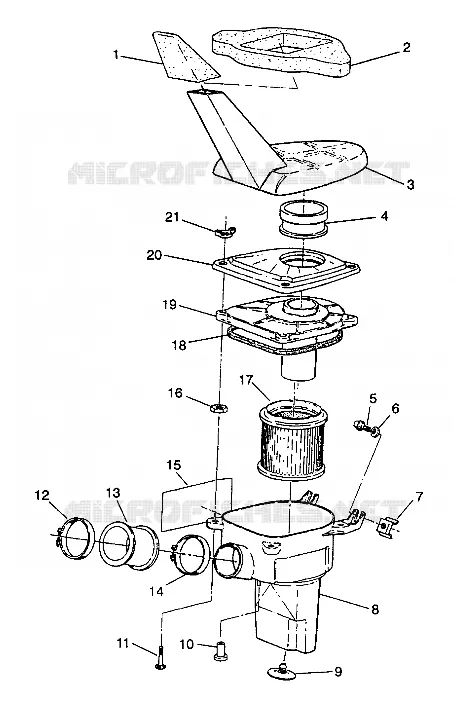

AIR BOX 6X6 250 W938727 (4924092409011A)
18
19
20
21
1
FOAM AIR FILTER (10)
5810444
$20,99 Unit Price incl. VAT
2
SEAL FOAM
5810441
Not Available
3
BOX AIR SILENCER
5431485
Not Available
4
BOOT AIR SILENCER
5410506
Not Available
5
BOLT(10)
7512246
Not Available
6
WASHER-.312 X .734 X .065-Z
7558302
$3,14 Unit Price incl. VAT
7
NUT SPEED(10)
7670060
$7,34 Unit Price incl. VAT
8
BOX AIR INTAKE
5431124
Not Available
9
VALVE UMBRELLA
5410549
Not Available
10
BUSHING
5410529
Not Available
11
BOLT-CARRIAGE(10)
7512275
$7,34 Unit Price incl. VAT
12
CLAMP(10)
7080140
Not Available
13
BOOT CARBURETOR
5410462
$52,49 Unit Price incl. VAT
14
CLAMP BAND NARROW
7080413
$5,76 Unit Price incl. VAT
15
TAPE FOIL
5810310
Not Available
16
PALNUT(10)
7670080
$9,44 Unit Price incl. VAT
17
FILTER AIR
7080369
$49,13 Unit Price incl. VAT
18
SEAL COVER AIR
5410510
Not Available
19
COVER AIR INTAKE
5430884
Not Available
20
RETAINER COVER
5220980
Not Available
21
NUT WING(10)
7542127
$2,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
