DRIVE CLUTCH ASSEMBLY 6X6 250 W938727 (4924092409030A)
5
Parts Diagram
Parts Catalog
SWING ARM 6X6 250 W938727 (4924092409029A)
by
DRIVEN CLUTCH ASSEMBLY 6X6 250 W938727 (4924092409031A)

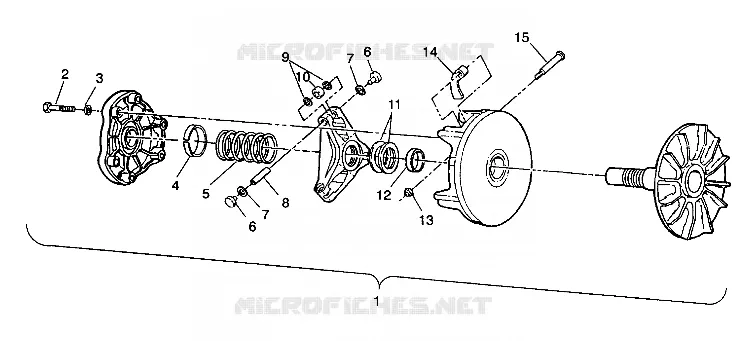

DRIVE CLUTCH ASSEMBLY 6X6 250 W938727 (4924092409030A)
1
CLUTCH DRIVE Substituted by 1321633 (Less 5 14)
1321605
1321976
$1 081,49 Unit Price incl. VAT
2
BOLT(10) Substituted by 7512163
7512176
7512163
$7,34 Unit Price incl. VAT
3
WASHER SPRING LOCK
7552801
$3,14 Unit Price incl. VAT
4
BEARING COVER (10)
3576510
$16,79 Unit Price incl. VAT
5
SPRING CLUTCH
7041157
$89,24 Unit Price incl. VAT
6
BUTTON GUIDE(10)
5430768
$19,94 Unit Price incl. VAT
7
O RING(10)
5410610
$10,49 Unit Price incl. VAT
8
PIN SPIDER (.950)
5020678
Not Available
9
WASHER
5430945
5438247
$3,14 Unit Price incl. VAT
10
ASM-ROLLER AND BUSHING
1321457
$73,49 Unit Price incl. VAT
11
SPACER-1.350 X 1.750 X .020-Y
5210752
$3,14 Unit Price incl. VAT
11
SPACER-1.350 X 1.750 X .050-Y
5210754
$6,29 Unit Price incl. VAT
11
SPACER-1.350X1.750X.032-Y
5210753
$4,19 Unit Price incl. VAT
12
Bearing Moveable (1/2 inch)
3576504
$41,99 Unit Price incl. VAT
13
NUT-10-24-FLEX LOC-Z
7541906
$6,29 Unit Price incl. VAT
14
WT. CLUTCH 16(6)
5630279
$62,99 Unit Price incl. VAT
15
SCR-SH-1/4X2 SAE4037 BLKOX&OIL
7512266
$5,76 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
